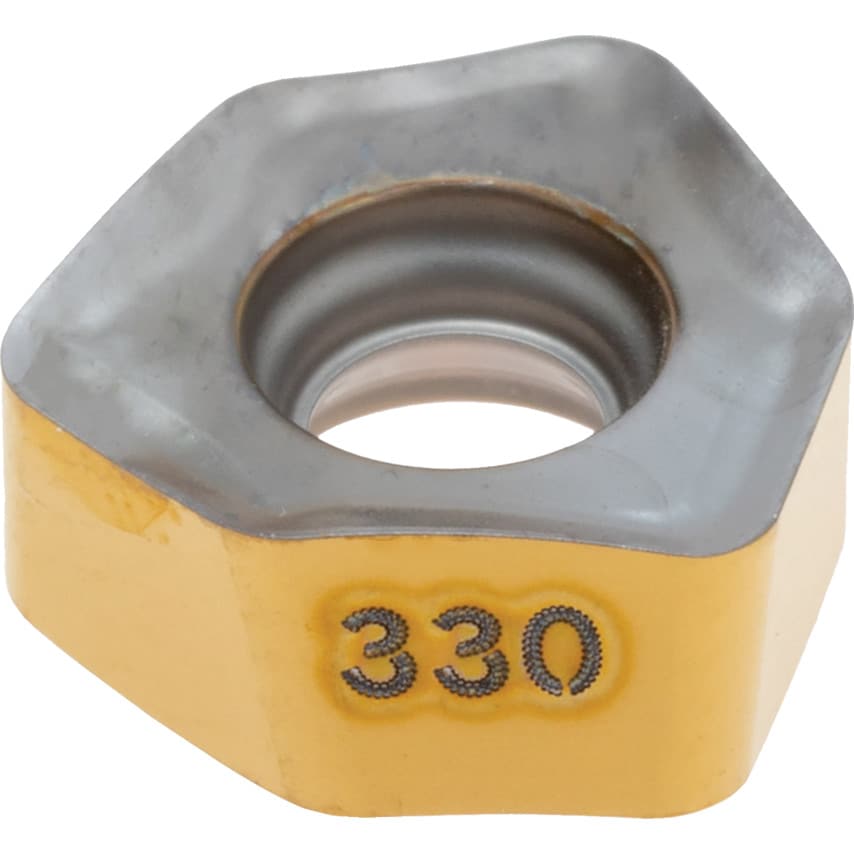

H600 WXCU Milling Inserts are double-sided 6 cutting edged inserts, for Fast Feed machining. Featuring a tough grade TiCN+TiN PVD coated with a 'SUMO TEC' surface treatment. Used for milling a wide range of work piece materials, at low to medium cuttingspeeds and for unstable machining conditions.
Features and Benefits
Coated with SUMO TEC surface treatment far added durability
Features a tough grade TiCN+TiN PVD
Double sided with 6 cutting edges for fast feed machining
Specifications
ISO Range - P/M/K: (P25-P40)(M30-M40)
ISO Range - H/S/N: (S20-S30)
Grade or Coating Type: PVD
Coating Layers: TiCN+TiN
Insert Grade : IC330
Typical Applications
Milling
| ISO Cut | M30 to M40 | P25 to P40 | S20 to S30 |
| ISO Designation | H600 WXCU05T312 HP |
| Thickness | 4.2mm |
| Manufacturer Grade | IC330 |
| Material | Carbide |
| Pack Quantity | 1 |
| Shape | Trigon |
| Inscribed Circle | 8.33mm |
| Chipbreaker | HP |
| ISO Category Grade | M | P | S |
| Material Application | High-Temperature Alloys | Stainless Steels | Steels |
| Finish/Coating | TiCN/TiN |
| Corner Radius | 1.2 |
| Insert Style | WXCU |
| Cutting Edge Length | 5.5mm |
| Insert Size | 05T3 |
