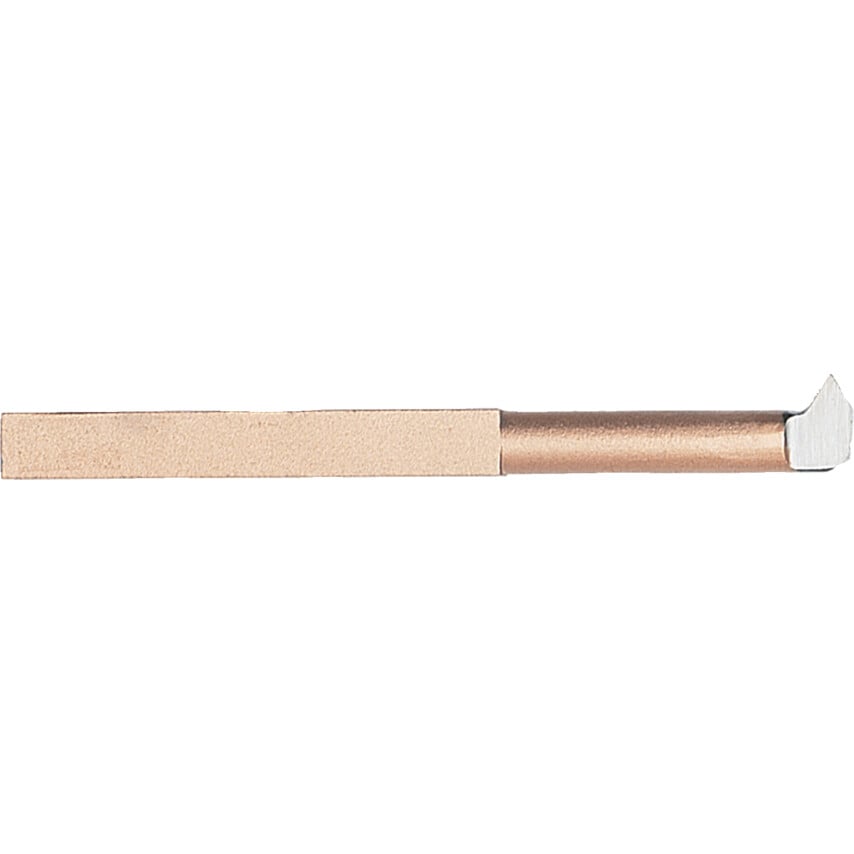

Manufactured from top quality sintered steels. For use on a wide range of applications from roughing to finishing. Manufactured to BS1296:Part 3:1978.
Internal Screw Cutting
| Approach Angle | 0\u00b0 |
| Front Clearance Angle | 6\u00b0 |
| Cutting Direction | Right Hand |
| Shank Height | 20.00mm |
| Shank Width | 20.00mm |
| Trail Angle | -1\u00b0 |
| Tip Material | HSS |
| Overall Length | 200.00mm |
| Standards Met | BS 1296 Part 3 |
| Tool Number | 50A |
| Material Application | Alloy Steel | Aluminium | Brass | Bronze | Cast Iron |
| Side Clearance Angle | 1\u00b0 |
| Tool Type | Internal Screw Cutting |
| Top Rake Angle | 5\u00b0 |
| Material Grade | HSS |
