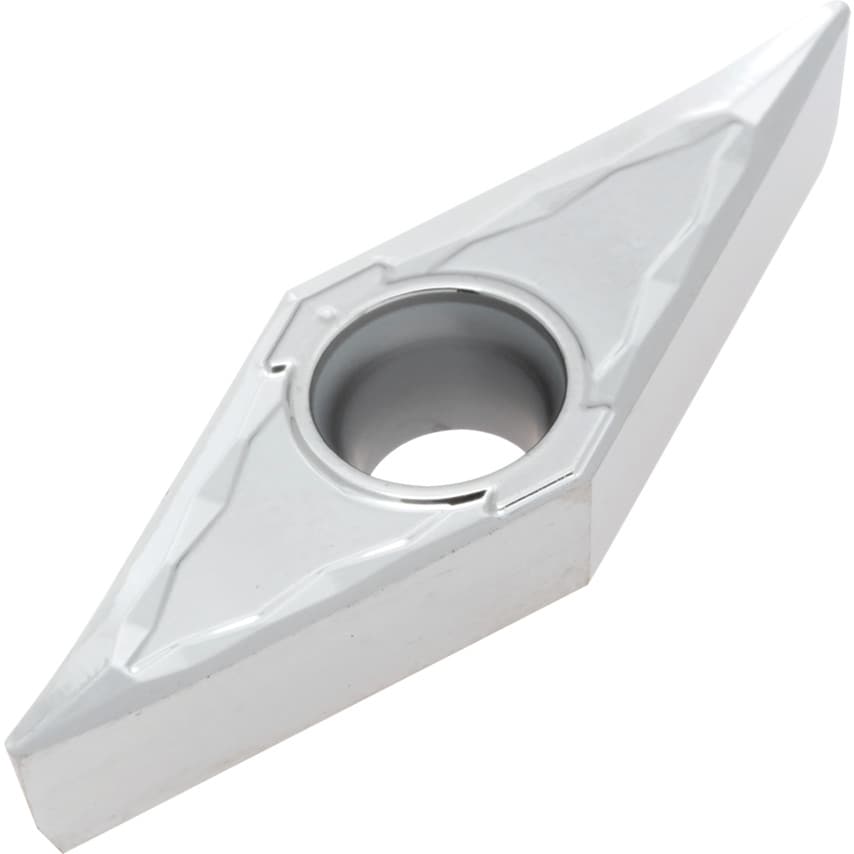

VCGT AS Turning Inserts are a 35 Rhombic Insert with a 7 positive flank, very positive rake angle and sharp cutting edge for machining aluminum.
Features and Benefits
Sharp cutting edge for optimum cutting performance
Carbide construction for strength and rigidity
Heat and wear resistant properties for prolonged tool life
Typical Applications
Turning
Stainless steel
Cast iron
Hardened steel
High-temperature alloy steel
Nonferrous metal
Standards
Insert Grade IC20
ISO Range - (M10-M25)(K10-K20)(H05-H15)(S05-S20)(N05-N25)
An uncoated grade for semifinishing, finishing and semiroughing of aluminum, cast iron and stainless steel.
| Chipbreaker | AS |
| ISO Cut | H05 to H15 | K10 to K20 | M10 to M25 | N05 to N25 | S05 to S20 |
| Corner Radius | 0.4 |
| Clearance Angle | 7\u00b0 |
| Inscribed Circle | 9.52mm |
| Cutting Edge Length | 16.6mm |
| Shape | 35\u00b0 Rhombic |
| Pack Quantity | 1 |
| Manufacturer Grade | IC20 |
| ISO Designation | VCGT 160404-AS |
| Insert Size | 160404 |
| Thickness | 4.76mm |
| ISO Category | H | K | M | N | S |
| MFR Part No. | 5540005 |
| Insert Style | VCGT |
| Material | Carbide |
| ISO Category Grade | H | K | M | N | S |
| Finish/Coating | Uncoated |
| Material Application | Cast Iron | High-Temperature Alloys | Nonferrous Metals | Nonferrous Metals | Stainless Steels |
