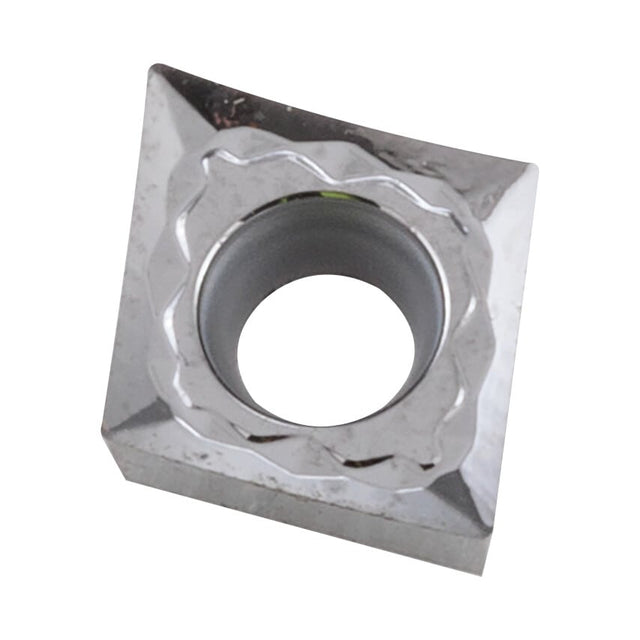

CCGT Turning Inserts
80 Rhombic Insert
Single-sided, 7 positive flank. Sharp cutting edge. Used for a wide range of materials. Positive rake.
Insert Grade IC20
ISO Range - (M10-M25)(K10-K20)(H05-H15)(S05-S20)(N05-N25)
Coating - Uncoated
An uncoated grade for semifinishing, finishing and semiroughing of aluminum, cast iron and stainless steel.
Chipbreaker : AS . Application Finish / Medium
| ISO Category | H | K | M | N | S |
| Insert Style | CCGT |
| Chipbreaker | AS |
| Cutting Direction | Neutral |
| Thickness | 2.38mm |
| Insert Size | 060202 |
| Material | Carbide |
| Cutting Edge Length | 6.5mm |
| Manufacturer Grade | IC20 |
| Finish/Coating | Uncoated |
| ISO Designation | CCGT 060202-AS |
| MFR Part No. | 5540010 |
| Inscribed Circle | 6.35mm |
| ISO Category Grade | H | K | M | N | S |
| Shape | 80\u00b0 Rhombic |
| Pack Quantity | 1 |
| Corner Radius | 0.2 |
| Clearance Angle | 7\u00b0 |
| Material Application | Cast Iron | High-Temperature Alloys | Nonferrous Metals | Nonferrous Metals | Stainless Steels |
| ISO Cut | H05 to H15 | K10 to K20 | M10 to M25 | N05 to N25 | S05 to S20 |
