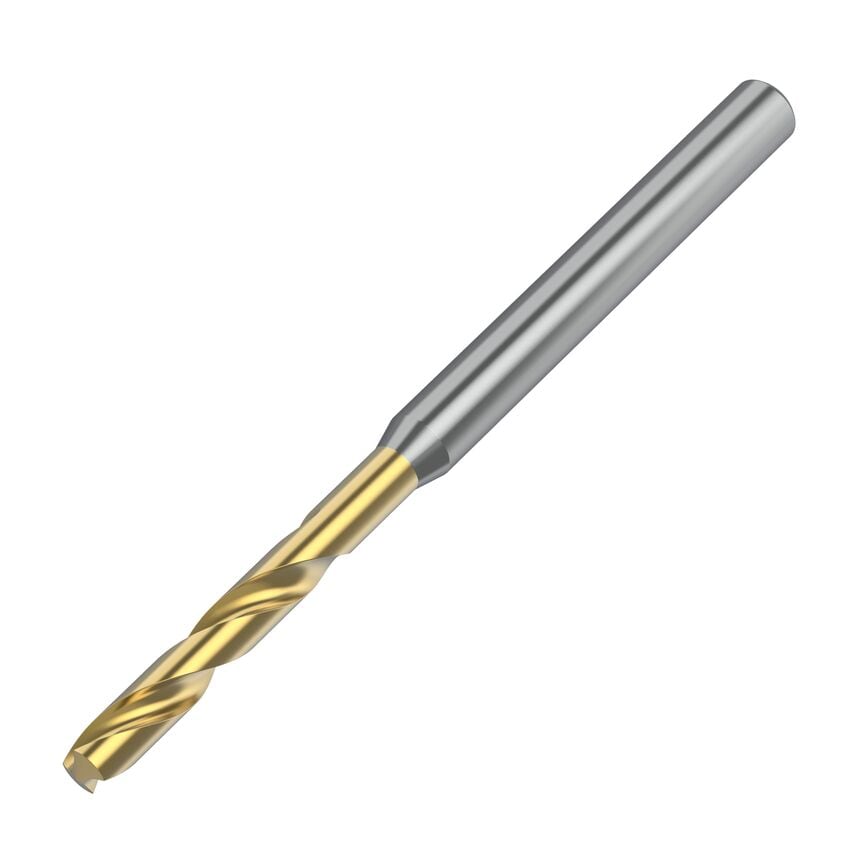

GOdrill Wide Range of Materials Through Coolant
Solid Carbide Drills
| MFR Part No. | 4149673 |
| Coolant Supplied | Yes |
| Overall Length | 122mm | 122.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Shank Length | 40.0000mm |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Unit Measured | Metric |
| Assembly Length | 84.045mm |
| Drill Depth | 68mm | 68.0000mm |
| Drill Diameter | 8.4000mm |
| Material | Carbide |
| Flute Construction | Helical Flute |
| Drill Point | 1.43mm |
| Coolant Diameter | 1.2800mm (0.0504in) |
| Helix Angle | 27.359 |
| Clamping Length | 40mm |
| Primary Material | Stainless Steel |
| Functional Length | 120.5700mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Finish/Coating | TiN |
| Hand Preference | Right |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Shank Diameter | 8.4mm |
| Flute Length | 80mm | 80.0000mm |
