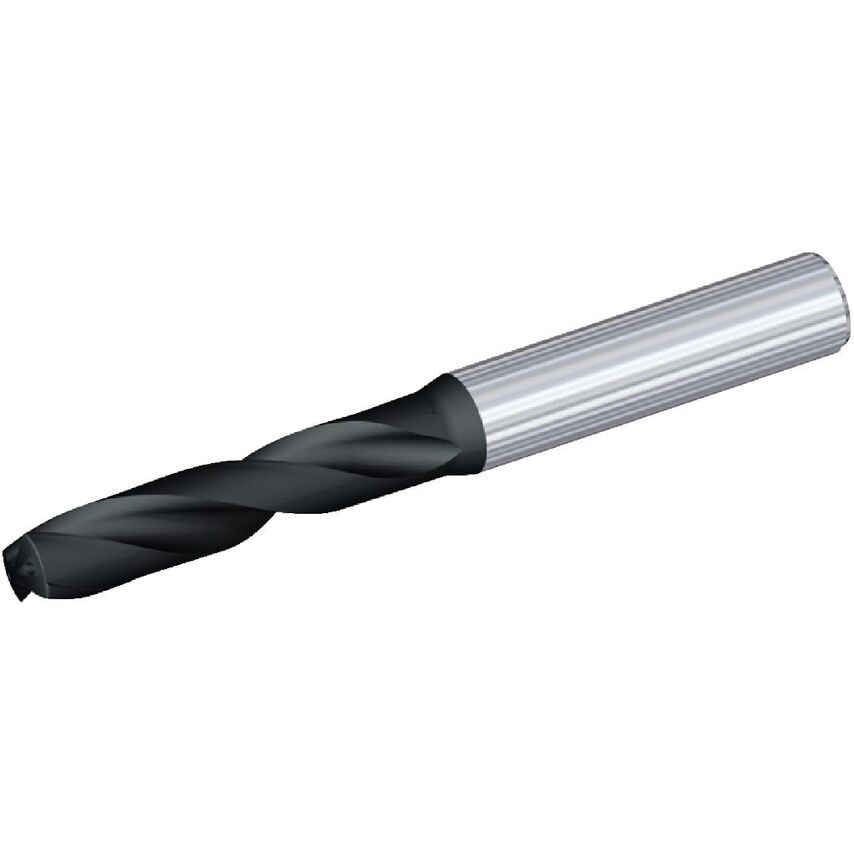

Y-TECH Drills Difficult-to-Machine Materials Through CoolantHigh-Performance Solid Carbide Drills
| Hand Preference | Right |
| Functional Length | 99.7300mm |
| Material | Carbide |
| Flute Construction | Helical Flute |
| Unit Measured | Metric |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Primary Material | Stainless Steel |
| Drill Diameter | 11.9080mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Coolant Supplied | Yes |
| Flute Length | 55mm | 55.0000mm |
| Shank Length | 45.0000mm |
| Helix Angle | 29.922 |
| Adapter Type | Cylindrical |
| Overall Length | 102mm | 102.0000mm |
| Drill Point | 2.27mm |
| Finish/Coating | AlTiN |
| Helix Type | Right Hand Helix/Flute |
| Assembly Length | 54.73mm |
| Clamping Length | 45mm |
| Drill Depth | 40mm | 40.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| MFR Part No. | 3904158 |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
