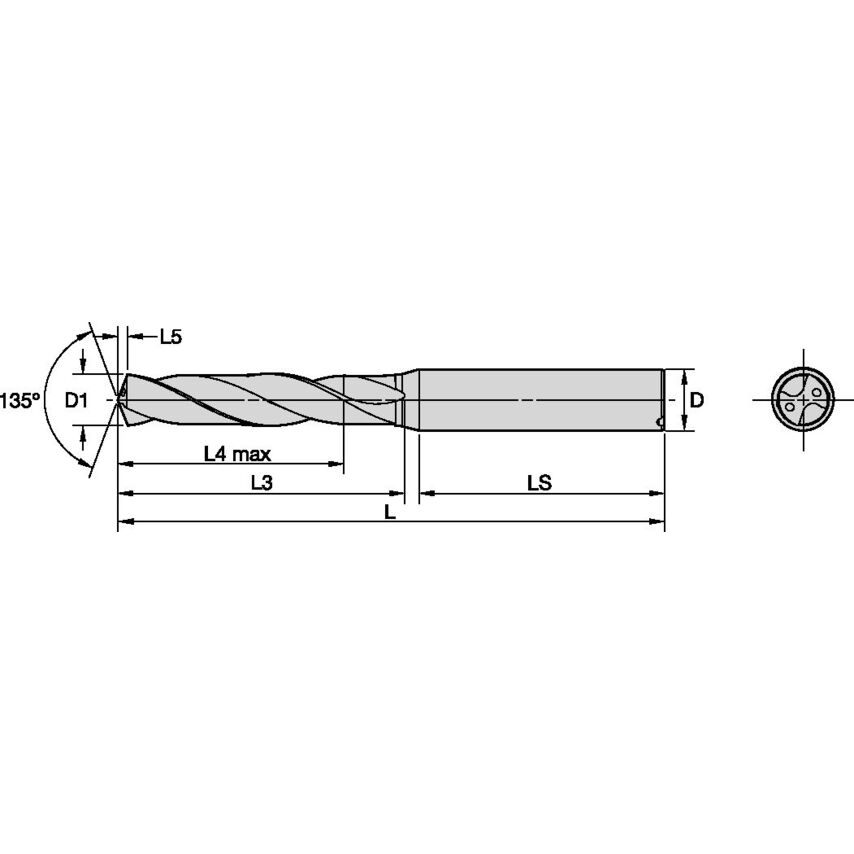

HP Beyond Drills Steel Through CoolantHigh-Performance Solid Carbide Drills
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Overall Length | 103mm | 103.0000mm |
| Unit Measured | Metric |
| Flute Construction | Helical Flute |
| Helix Angle | 26.517 |
| Material | Carbide |
| Primary Material | Steel |
| MFR Part No. | 4112644 |
| Clamping Length | 40mm |
| Drill Depth | 49mm | 49.0000mm |
| Functional Length | 101.4860mm |
| Flute Length | 61mm | 61.0000mm |
| Drill Diameter | 8.1000mm |
| Adapter Type | Cylindrical |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Assembly Length | 61.486mm |
| Shank Length | 40.0000mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Number of Flutes | 2 |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Drill Point | 1.514mm |
| Finish/Coating | TiAlN |
