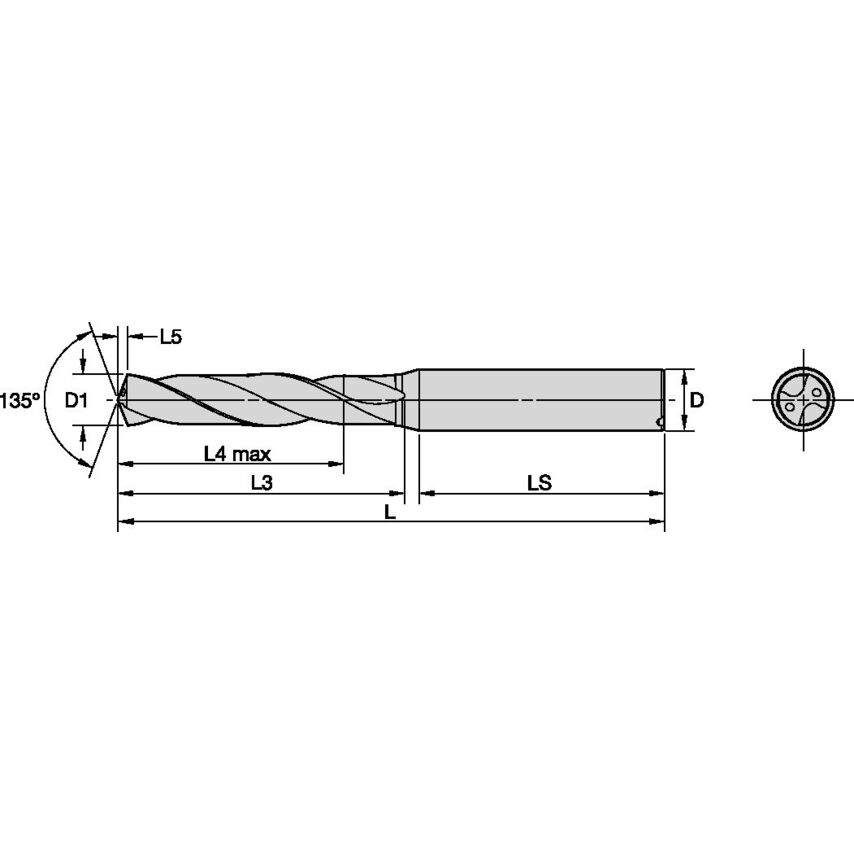

HP Beyond Drills Steel Through CoolantHigh-Performance Solid Carbide Drills
| Shank Length | 36.0000mm |
| Drill Depth | 20mm | 20.0000mm |
| Flute Length | 28mm | 28.0000mm |
| Clamping Length | 36mm |
| Finish/Coating | TiAlN |
| Functional Length | 64.9570mm |
| Helix Angle | 28.174 |
| Drill Point | 1.043mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Adapter Type | Cylindrical |
| Overall Length | 66mm | 66.0000mm |
| Adapter Style | Straight-Cylindrical |
| Flute Construction | Helical Flute |
| Drill Diameter | 5.5580mm |
| Number of Flutes | 2 |
| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Primary Material | Steel |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Assembly Length | 28.957mm |
| Coolant Supplied | Yes |
| Material | Carbide |
| MFR Part No. | 4112704 |
| Hand Preference | Right |
