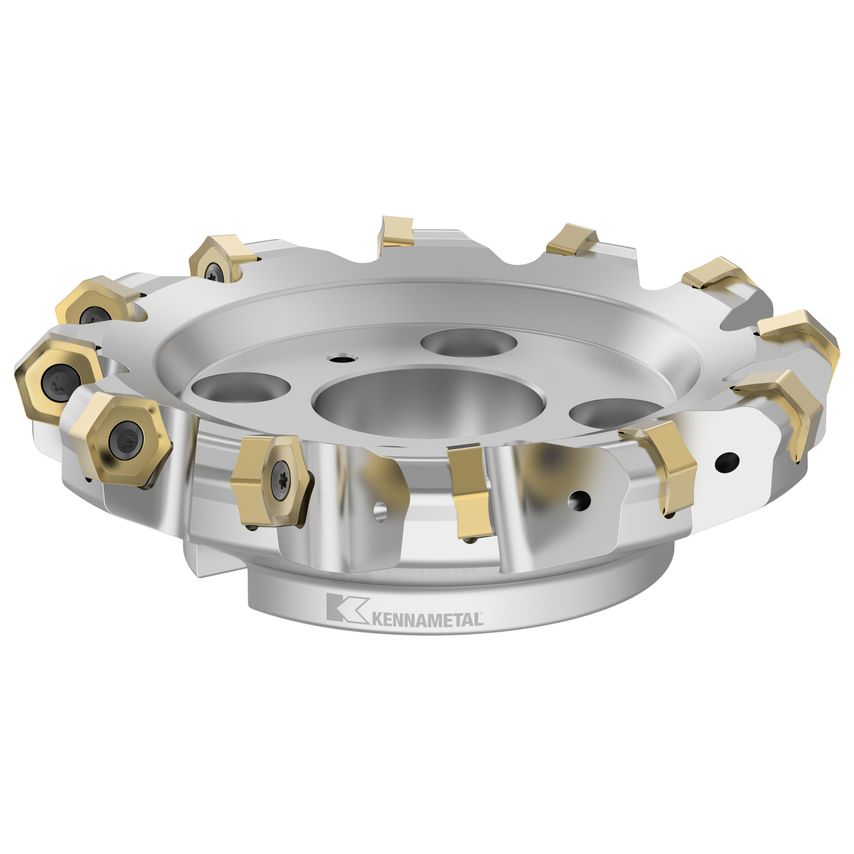

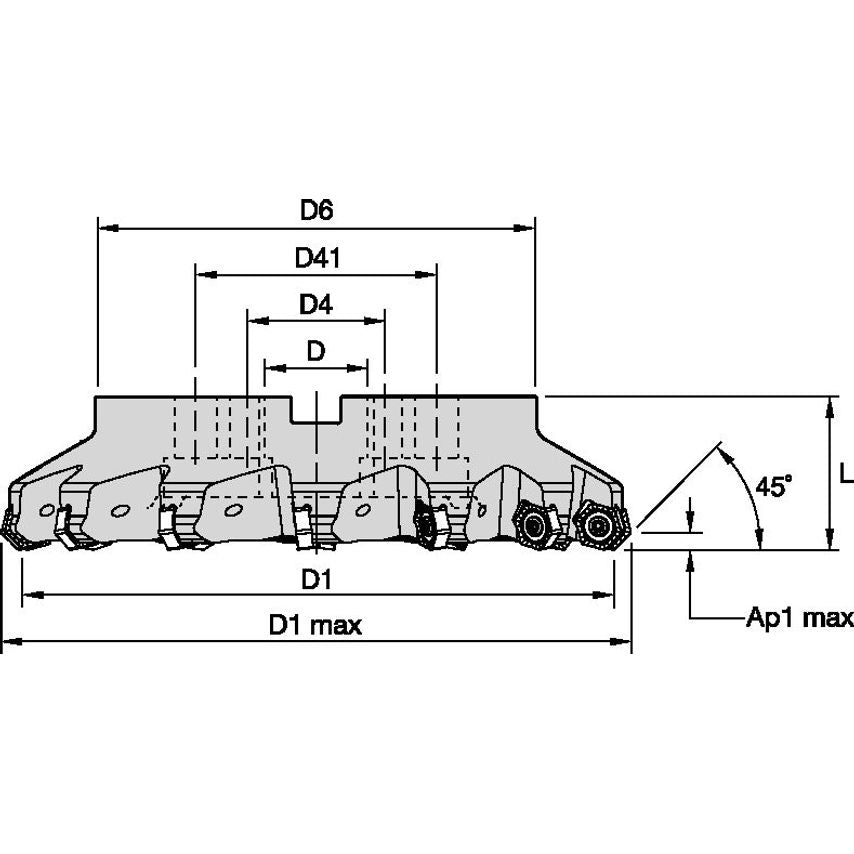

Shell MillsDodeka MAX 45
| Unit Measured | Metric |
| Maximum Cutting Diameter | 332.307mm |
| Milling Application | Face Mill |
| Insert Shape | H-Hexagon 120 |
| Body Diameter Max | 327.018mm |
| MFR Part No. | 4059486 |
| Number of Flutes | 18 |
| Hub Diameter | 230mm | 230.0000mm |
| Max. Depth of Cut | 8.0000mm |
| Body Material | Steel |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Center Cutting Tool | No Center Cutting |
| Clamp Type | Screw Clamping |
| Number of Inserts | 18 |
| Adapter Type Machine Side | Shell Mill |
