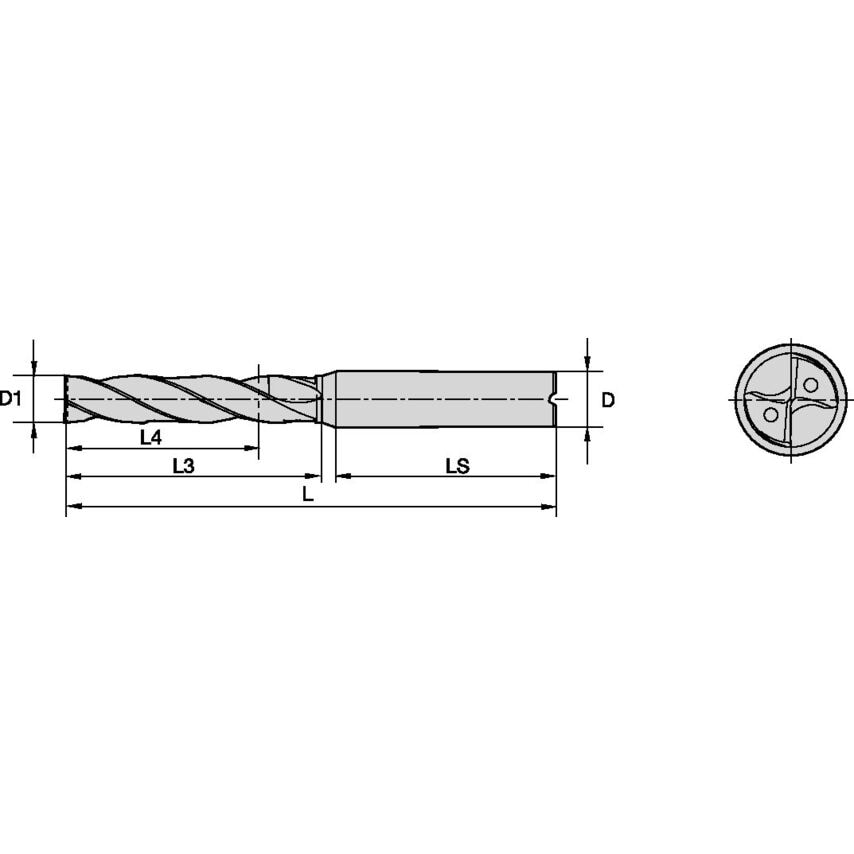

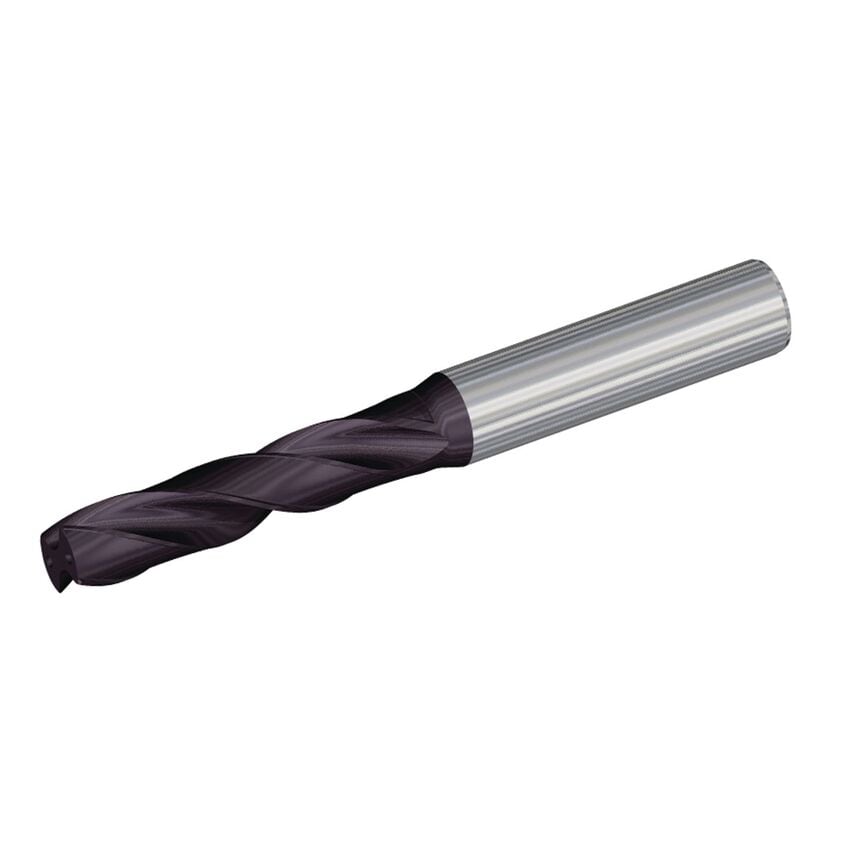

180 Flat-Bottom Drills Through CoolantHigh-Performance Solid Carbide Drills
| Adapter Style | Straight-Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Coolant Supplied | Yes |
| Flute Construction | Helical Flute |
| Helix Angle | 27.546 |
| Hand Preference | Right |
| Number of Flutes | 2 |
| Drill Depth | 43mm | 43.0000mm |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Adapter Type | Cylindrical |
| Shank Length | 45.0000mm |
| Functional Length | 106.5700mm |
| Coolant Diameter | 2.0000mm (0.0693in) |
| Clamping Length | 45mm |
| Drill Diameter | 13.0000mm |
| Overall Length | 107mm | 107.0000mm |
| MFR Part No. | 3885855 |
| Assembly Length | 64.57mm |
| Primary Material | Steel |
| Flute Length | 60mm | 60.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Point | 0.43mm |
| Material | Carbide |
| Unit Measured | Metric |
| Finish/Coating | AlTiN |
