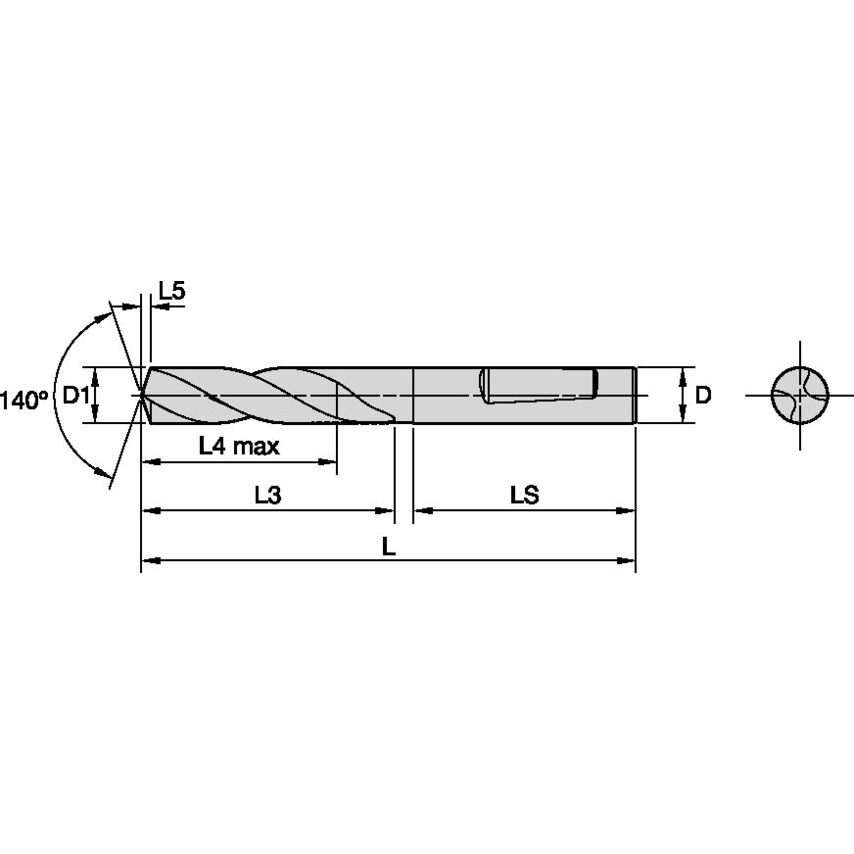

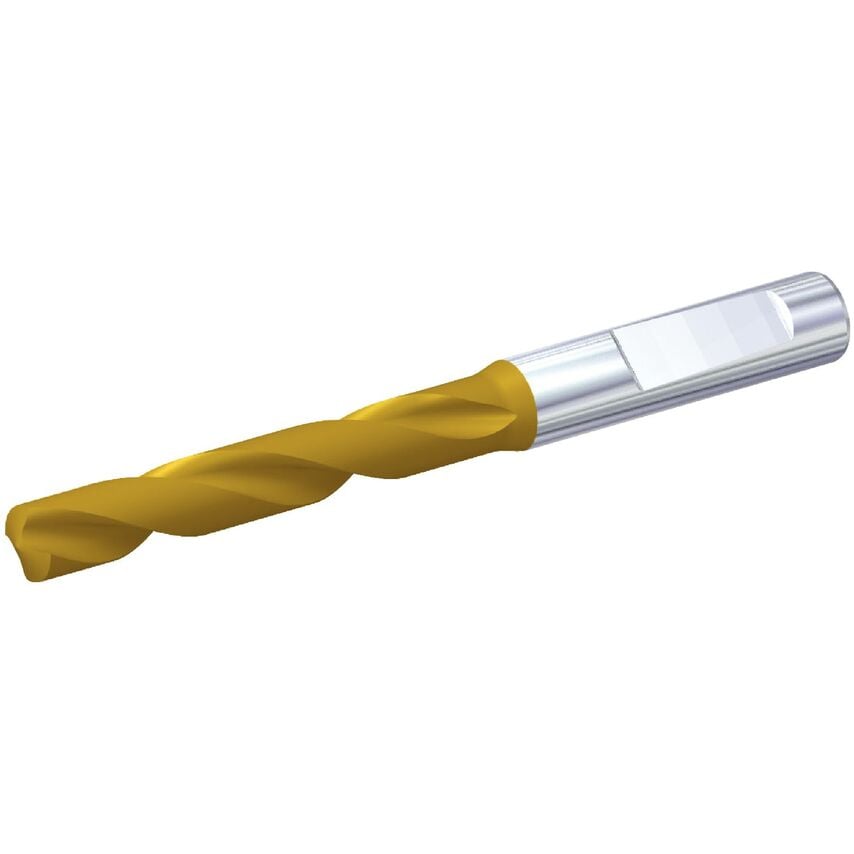

GOdrill Wide Range of MaterialsSolid Carbide Drills
| Finish/Coating | TiN |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Number of Flutes | 2 |
| Functional Length | 120.0500mm |
| Material | Carbide |
| Coolant Supplied | No |
| Drill Diameter | 17.0000mm |
| Unit Measured | Metric |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Overall Length | 123mm | 123.0000mm |
| Flute Length | 73mm | 73.0000mm |
| Clamping Length | 48mm |
| Flute Construction | Helical Flute |
| Shank Length | 48.0000mm |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Helix Angle | 28.105 |
| Drill Depth | 51mm | 51.0000mm |
| Adapter Type | Cylindrical |
| Assembly Length | 70.05mm |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| Primary Material | Steel |
| MFR Part No. | 4151507 |
| Drill Point | 2.95mm |
