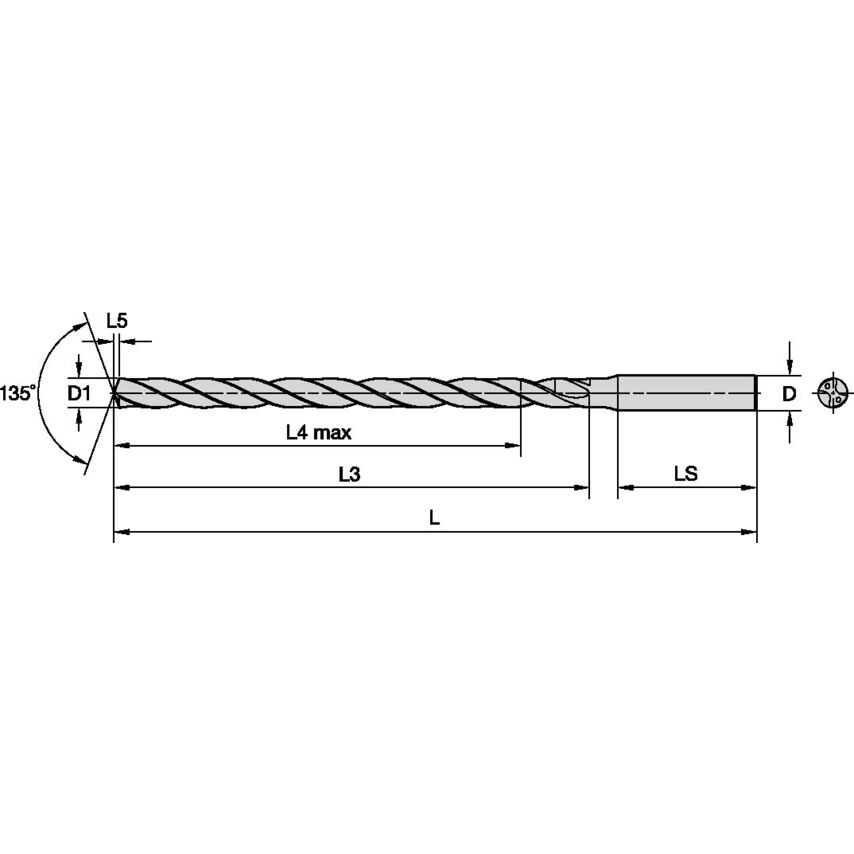

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Coolant Diameter | 2.0000mm (0.0504in) |
| Clamping Length | 45mm |
| Helix Angle | 27.001 |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| MFR Part No. | 4169300 |
| Hand Preference | Right |
| Coolant Supplied | Yes |
| Drill Depth | 166mm | 166.0000mm |
| Material | Carbide |
| Shank Length | 45.0000mm |
| Primary Material | Steel |
| Finish/Coating | TiAlN |
| Drill Diameter | 12.7000mm |
| Flute Length | 194mm | 194.0000mm |
| Overall Length | 246mm | 246.0000mm |
| Number of Flutes | 2 |
| Unit Measured | Metric |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Flute Construction | Helical Flute |
| Assembly Length | 201.63mm |
| Functional Length | 243.6300mm |
| Adapter Type | Cylindrical |
| Drill Point | 2.37mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
