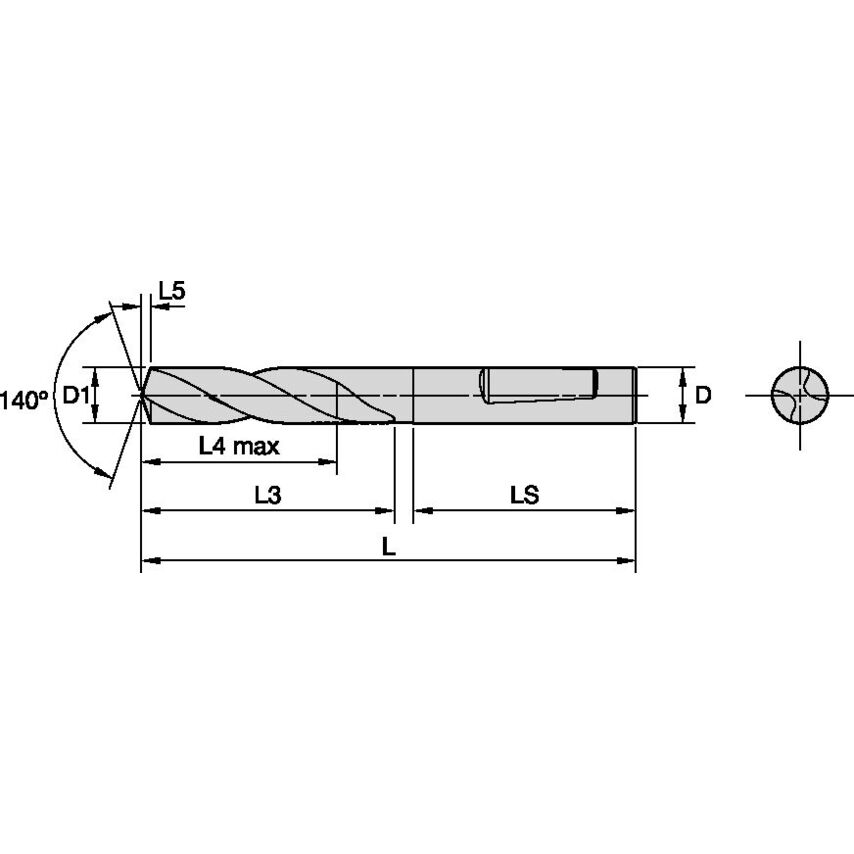

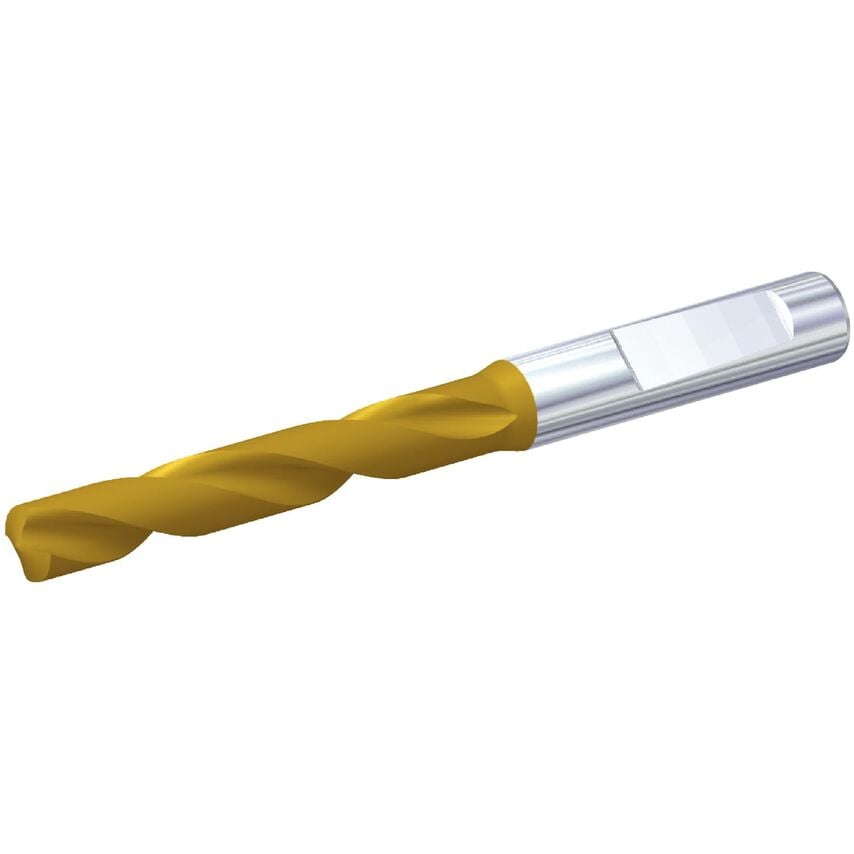

GOdrill Wide Range of MaterialsSolid Carbide Drills
| Shank Length | 50.0000mm |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 20.0000mm |
| Assembly Length | 101.7mm |
| Coolant Supplied | No |
| Unit Measured | Metric |
| MFR Part No. | 4151070 |
| Functional Length | 149.7000mm |
| Drill Diameter Tolerance | -0.021000 to 0.000000mm |
| Primary Material | Steel |
| Drill Depth | 77mm | 77.0000mm |
| Drill Diameter | 19.0000mm |
| Clamping Length | 48mm |
| Flute Construction | Helical Flute |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Helix Angle | 28.269 |
| Drill Point | 3.3mm |
| Finish/Coating | TiN |
| Helix Type | Right Hand Helix/Flute |
| Number of Flutes | 2 |
| Flute Length | 101mm | 101.0000mm |
| Overall Length | 153mm | 153.0000mm |
| Hand Preference | Right |
