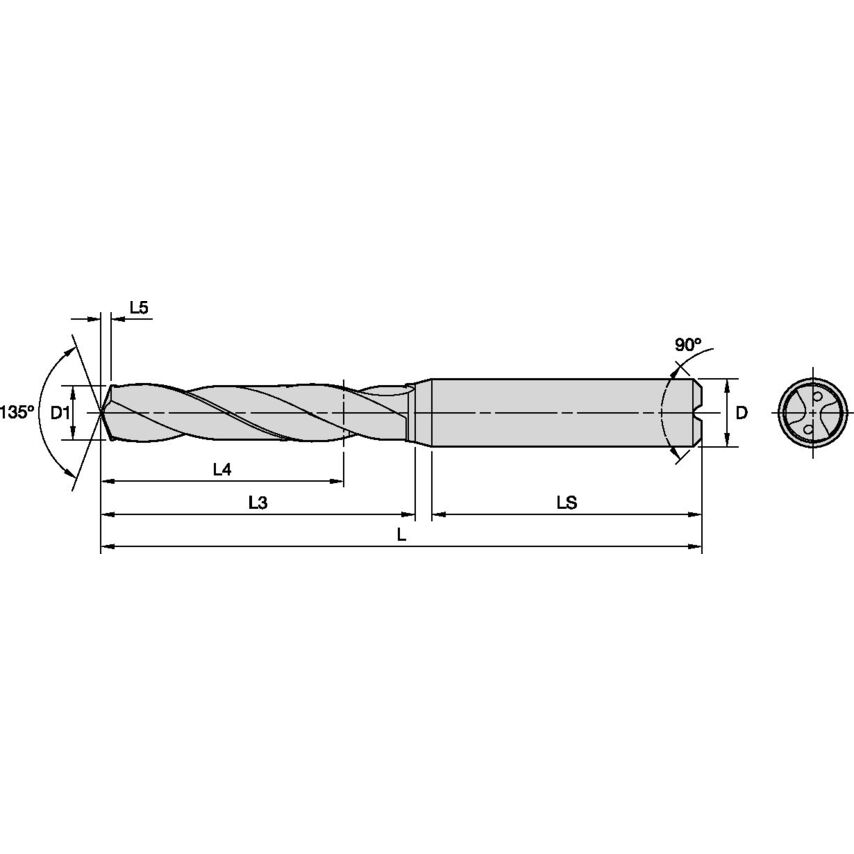

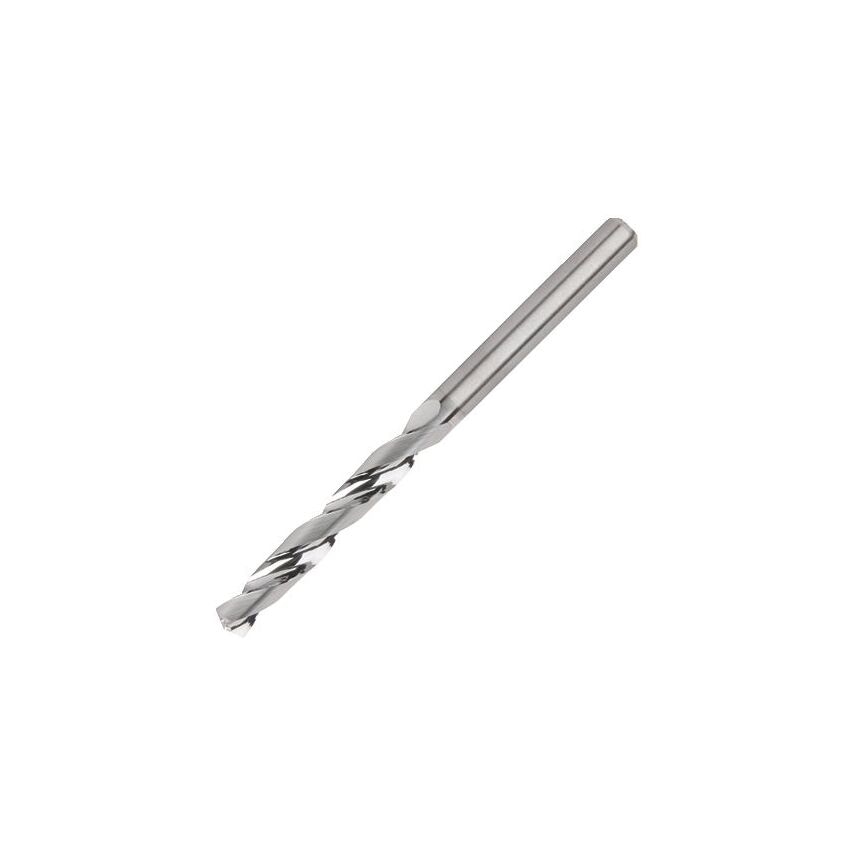

HPS Beyond Drills Aluminum Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Flute Length | 94mm | 94.0000mm |
| Drill Point | 1.978mm |
| Drill Depth | 79mm | 79.0000mm |
| Finish/Coating | Uncoated |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Adapter Style | MQL Drill Shank |
| Primary Material | Non-Ferrous Materials |
| Number of Flutes | 2 |
| Functional Length | 139.0220mm |
| Adapter Type | Cylindrical |
| Coolant Supplied | Yes |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Drill Diameter | 10.7160mm |
| Overall Length | 141mm | 141.0000mm |
| Material | Carbide |
| Shank Length | 45.0000mm |
| Helix Angle | 27.380 |
| Assembly Length | 96.022mm |
| MFR Part No. | 5987620 |
| Coolant Diameter | 1.7600mm (0.0220in) |
| Flute Construction | Helical Flute |
