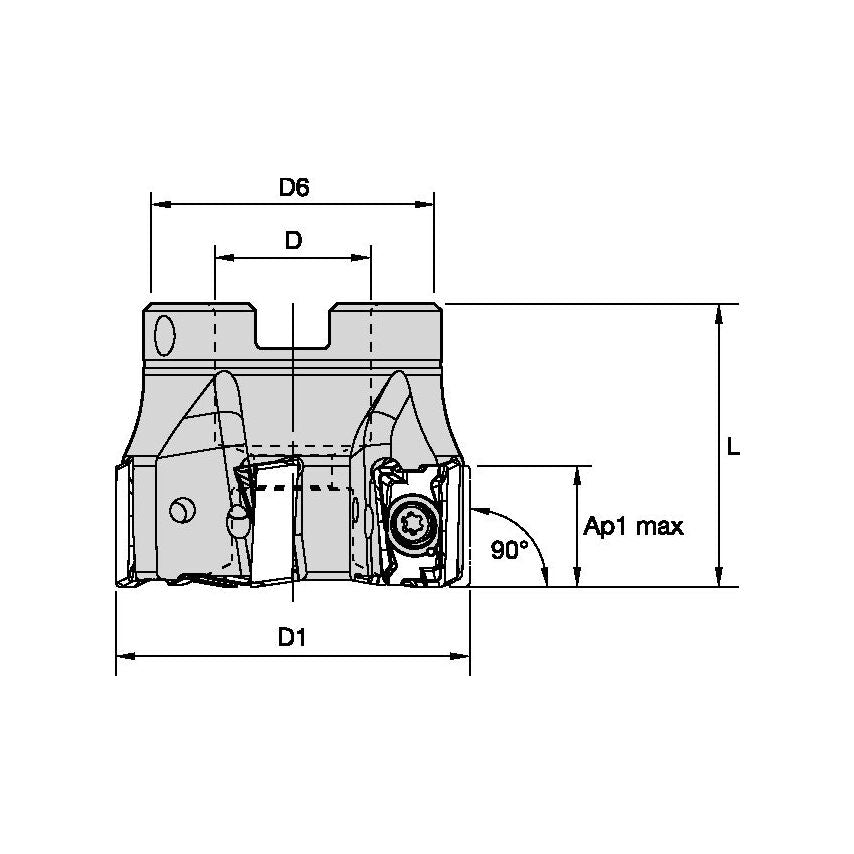

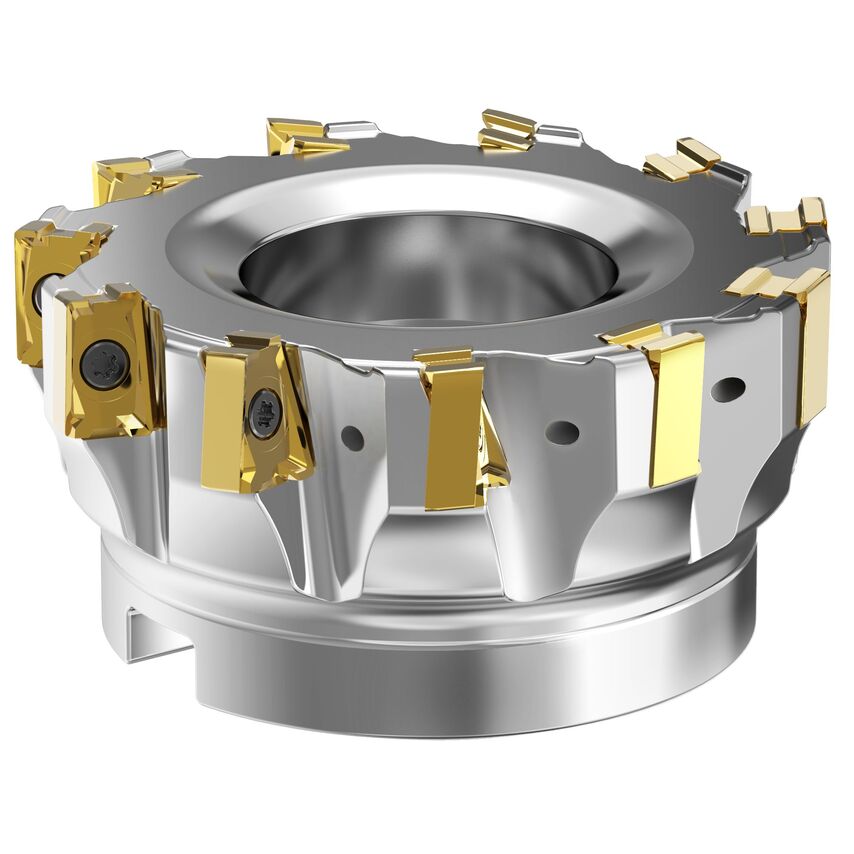

Face Mills Mill 4-15Mill 4 Series
| Insert Shape | X-Rectangle Mill 4 90 |
| MFR Part No. | 5698490 |
| Max. Depth of Cut | 15.5000mm |
| Number of Inserts | 7 |
| Clamp Type | Screw Clamping |
| Body Diameter Max | 121.85mm |
| Number of Flutes | 7 |
| Unit Measured | Metric |
| Milling Application | Face Mill |
| Hub Diameter | 90mm | 90.0000mm |
| Coolant Supplied | Yes |
| Adapter Type Machine Side | Shell Mill |
| Body Material | Steel |
| Hand Preference | Right |
| Center Cutting Tool | No Center Cutting |
