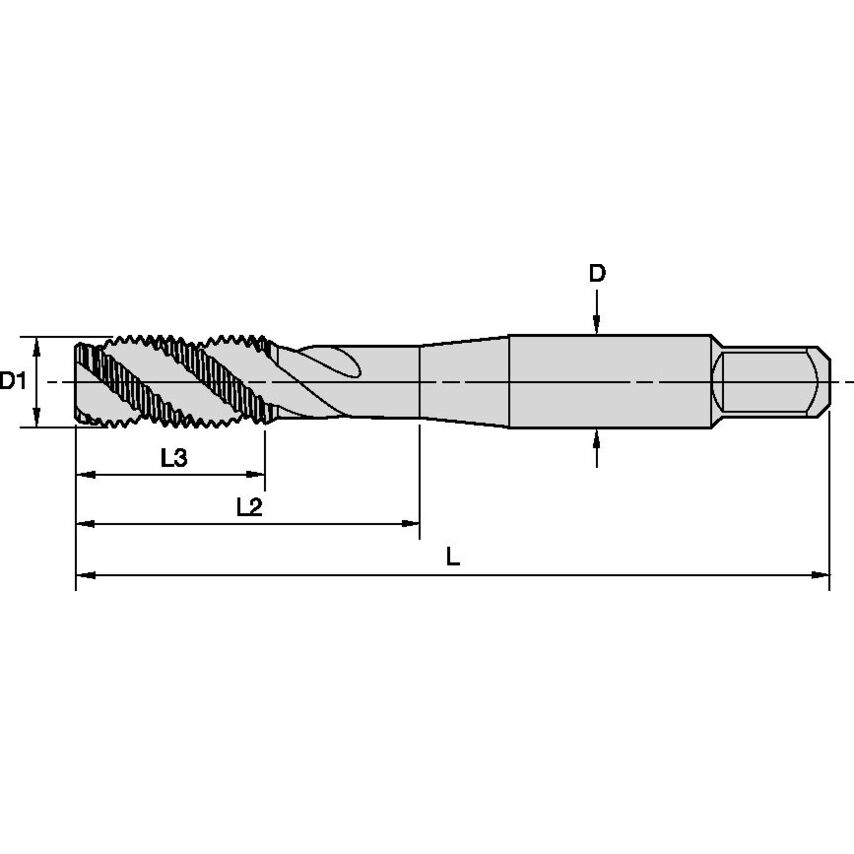

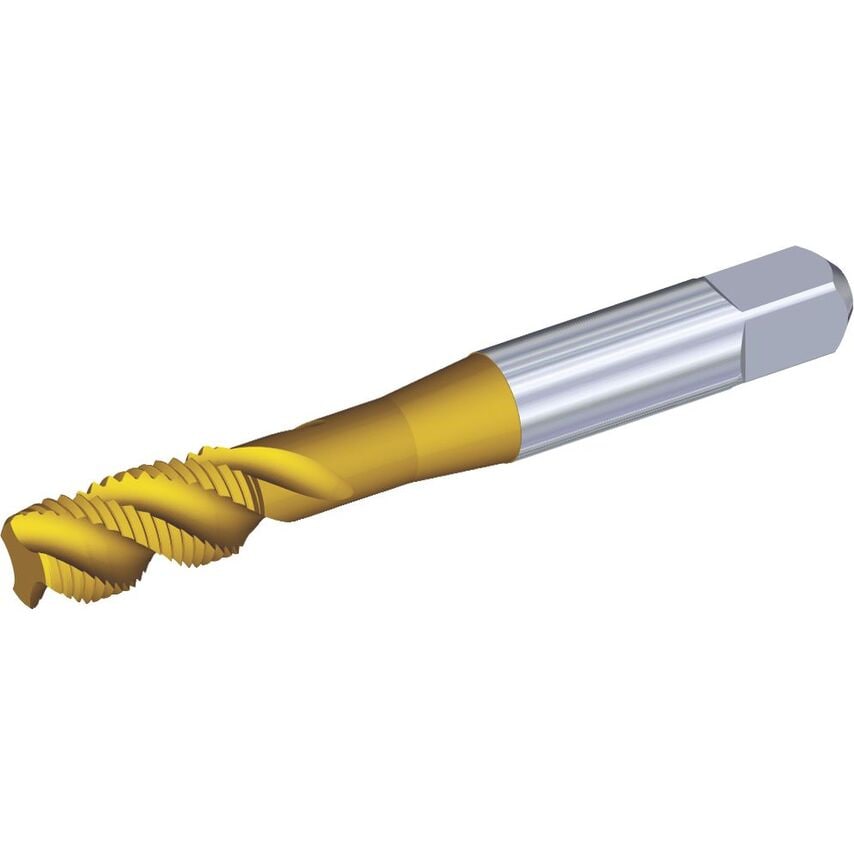

T838 - Form C Semi-Bottoming Chamfer - Machine Screw and Fractional - ANSI - Tension/Compression Holders
| Hand Preference | Right |
| Number of Flutes | 3 |
| Tap Application | 2 - Blind Hole |
| Thread Pitch Style | Nc/Unc |
| Cutting Tool Material | HSS-E |
| Thread Length | 9.7000mm |
| MFR Part No. | 6140619 |
| Thread Diameter | 4.166mm |
| Overall Length | 54mm | 54.0000mm |
| Adapter Type Machine Side | Cylindrical |
| Neck Length | 9.9mm | 9.9000mm |
