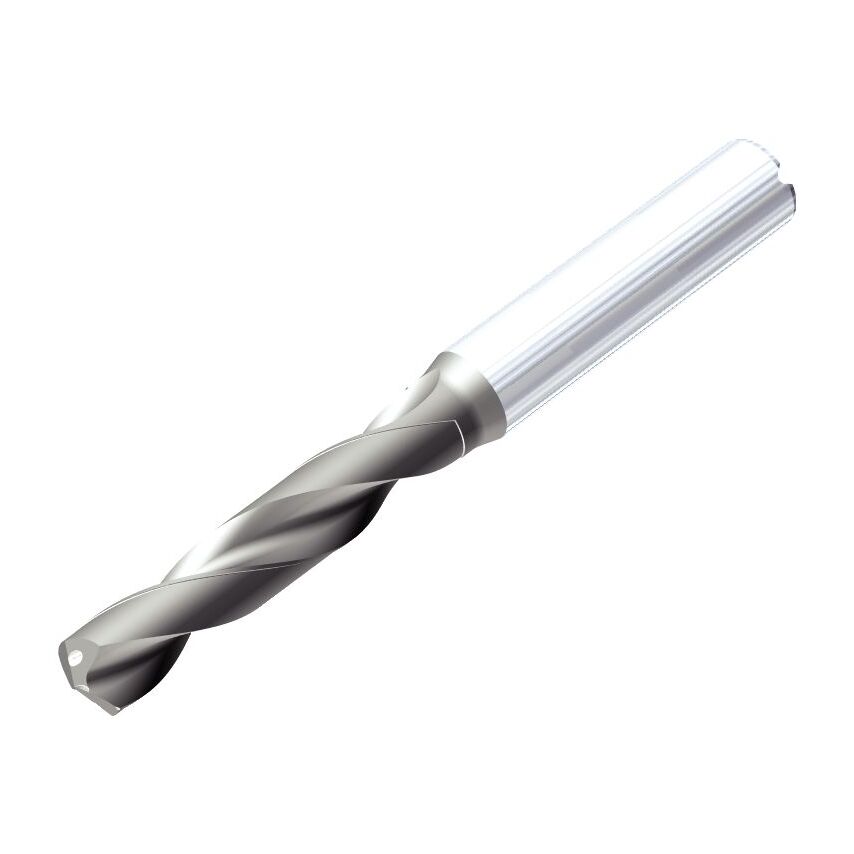

KMH Drills Hard Materials Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Drill Depth | 17mm | 17.0000mm |
| Coolant Supplied | Yes |
| Flute Construction | Helical Flute |
| Flute Length | 24mm | 24.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Finish/Coating | AlTiN |
| Material | Carbide |
| Number of Flutes | 2 |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Primary Material | Hardened Materials |
| Overall Length | 66mm | 66.0000mm |
| Drill Diameter | 4.0000mm |
| Assembly Length | 38.19mm |
| Adapter Type | Cylindrical |
| Functional Length | 65.1900mm |
| Drill Diameter Tolerance | 0.004000 to 0.016000mm |
| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 6359015 |
| Shank Length | 36.0000mm |
| Drill Point | 0.81mm |
| Coolant Diameter | 0.7000mm (0.0693in) |
| Helix Angle | 29.184 |
| Hand Preference | Right |
