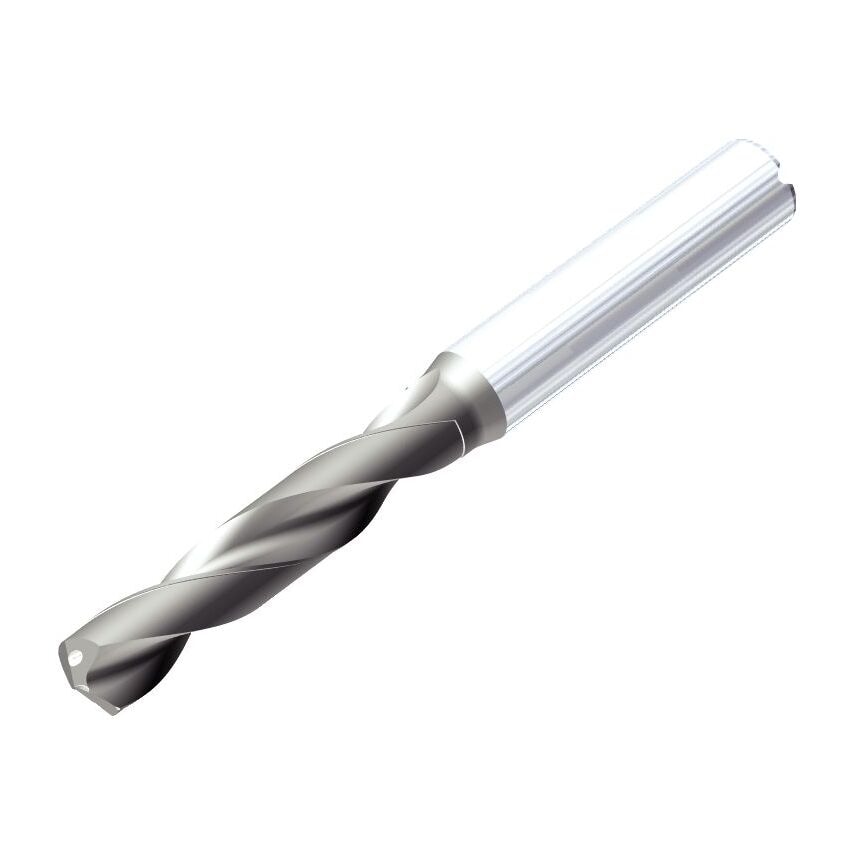

KMH Drills Hard Materials Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Diameter | 2.2400mm (0.0567in) |
| Functional Length | 112.1400mm |
| MFR Part No. | 6359049 |
| Primary Material | Hardened Materials |
| Flute Construction | Helical Flute |
| Adapter Type | Cylindrical |
| Unit Measured | Metric |
| Material | Carbide |
| Helix Type | Right Hand Helix/Flute |
| Coolant Supplied | Yes |
| Flute Length | 65mm | 65.0000mm |
| Hand Preference | Right |
| Shank Length | 48.0000mm |
| Finish/Coating | AlTiN |
| Number of Flutes | 2 |
| Overall Length | 115mm | 115.0000mm |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter | 14.5000mm |
| Helix Angle | 27.053 |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Assembly Length | 70.14mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Depth | 45mm | 45.0000mm |
| Drill Point | 2.86mm |
