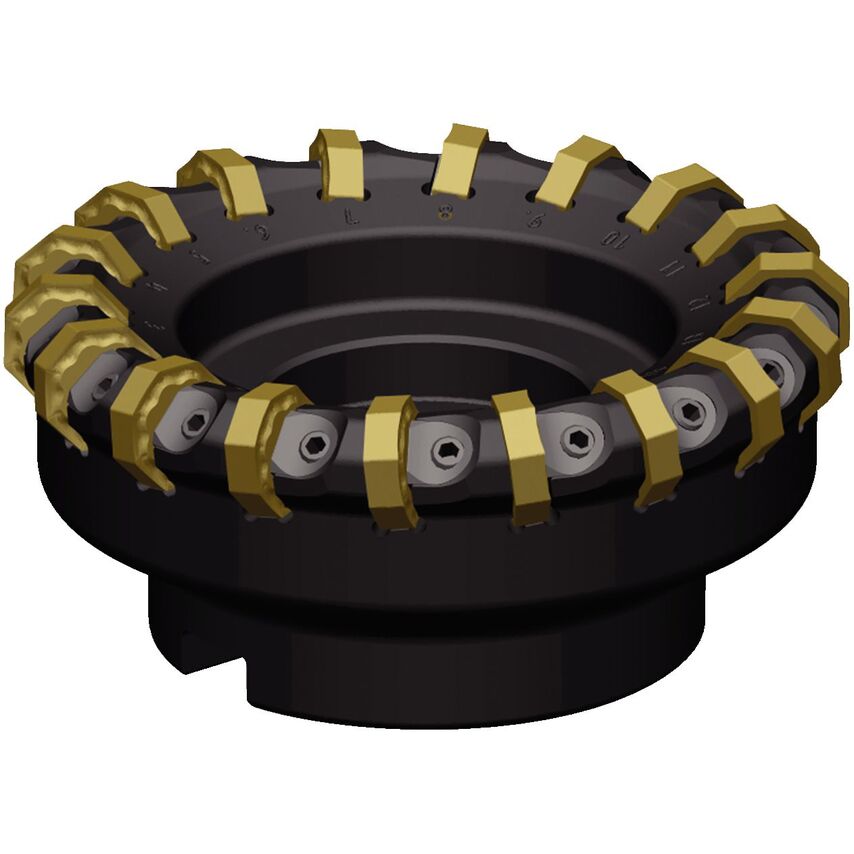

Shell MillsMill 16
| Body Diameter Max | 161.42mm |
| Hand Preference | Right |
| Clamp Type | Screw Clamping |
| Unit Measured | Imperial |
| Coolant Supplied | Yes |
| Number of Inserts | 16 |
| Adapter Type Machine Side | Shell Mill |
| Number of Flutes | 16 |
| Insert Shape | O-Octogon 135 |
| Body Material | Steel |
| MFR Part No. | 6134106 |
| Maximum Cutting Diameter | 164.95mm |
| Milling Application | Face Mill |
| Max. Depth of Cut | 5.5000mm |
| Hub Diameter | 100mm | 100.0000mm |
| Center Cutting Tool | No Center Cutting |
