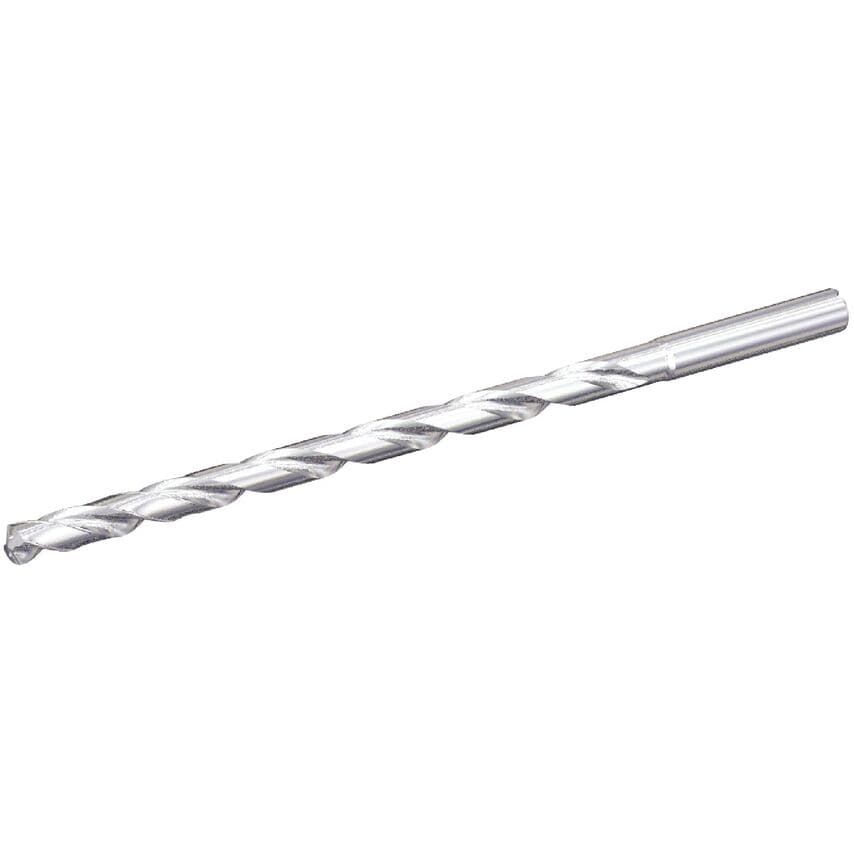

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Hand Preference | Right |
| Finish/Coating | Uncoated |
| Drill Depth | 134mm | 134.0000mm |
| Functional Length | 198.5200mm |
| Drill Point | 1.48mm |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Flute Length | 154mm | 154.0000mm |
| Primary Material | Steel |
| Adapter Style | Straight-Cylindrical |
| Helix Angle | 29.260 |
| Adapter / Shank / Bore Diameter | 9.0000mm |
| MFR Part No. | 6351233 |
| Flute Construction | Helical Flute |
| Material | Carbide |
| Shank Length | 42.0000mm |
| Unit Measured | Metric |
| Coolant Diameter | 1.1300mm (0.0165in) |
| Drill Diameter | 8.7330mm |
| Adapter Type | Cylindrical |
| Number of Flutes | 2 |
| Overall Length | 200mm | 200.0000mm |
| Assembly Length | 161.995mm |
| Coolant Supplied | Yes |
| Helix Type | Right Hand Helix/Flute |
