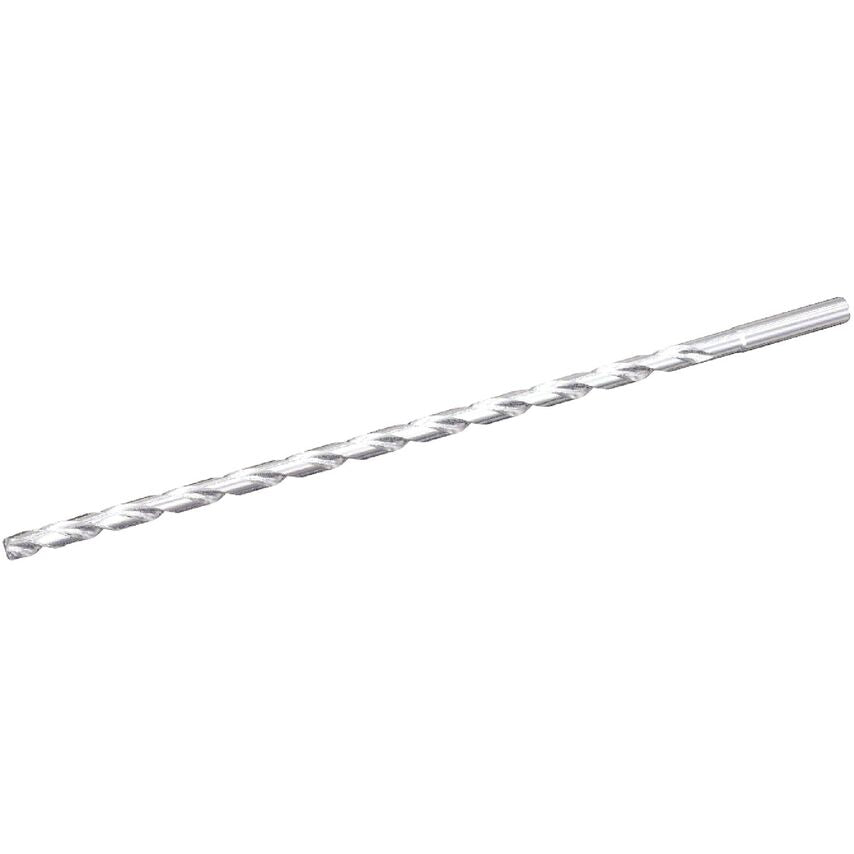

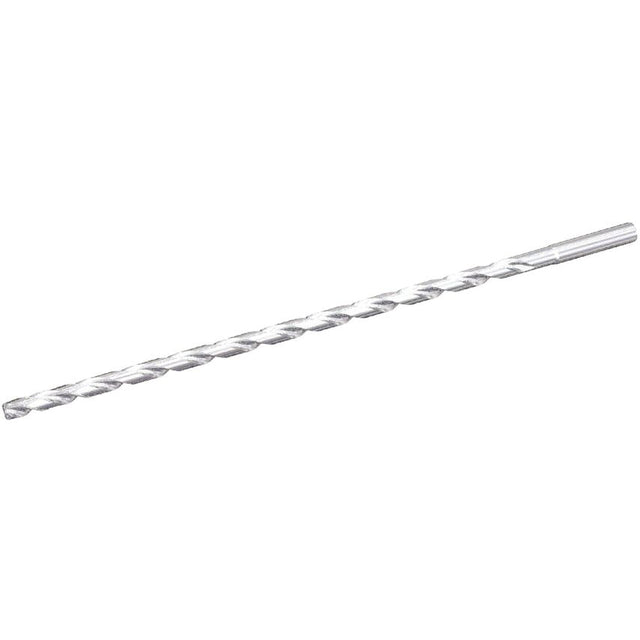

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Assembly Length | 205.07mm |
| MFR Part No. | 6351285 |
| Helix Type | Right Hand Helix/Flute |
| Adapter Style | Straight-Cylindrical |
| Flute Construction | Helical Flute |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Flute Length | 185mm | 185.0000mm |
| Coolant Diameter | 0.7000mm (0.0787in) |
| Material | Carbide |
| Functional Length | 232.0700mm |
| Drill Point | 0.93mm |
| Drill Depth | 172mm | 172.0000mm |
| Overall Length | 233mm | 233.0000mm |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Drill Diameter | 5.5000mm |
| Hand Preference | Right |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Coolant Supplied | Yes |
| Primary Material | Steel |
| Unit Measured | Metric |
| Shank Length | 36.0000mm |
| Finish/Coating | Uncoated |
| Helix Angle | 27.888 |
