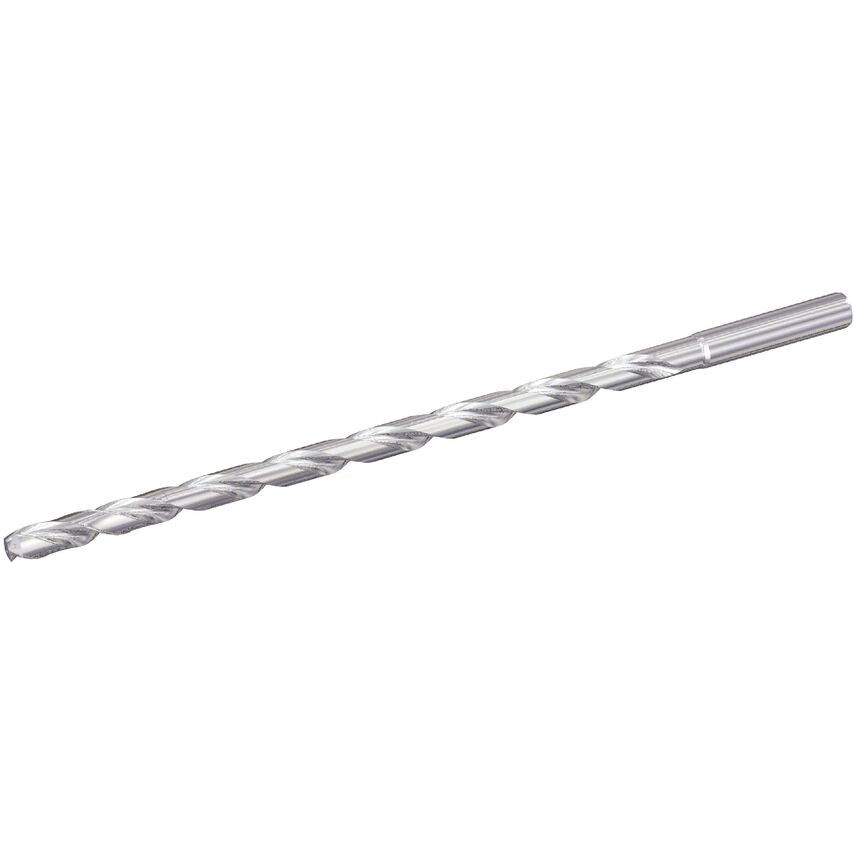

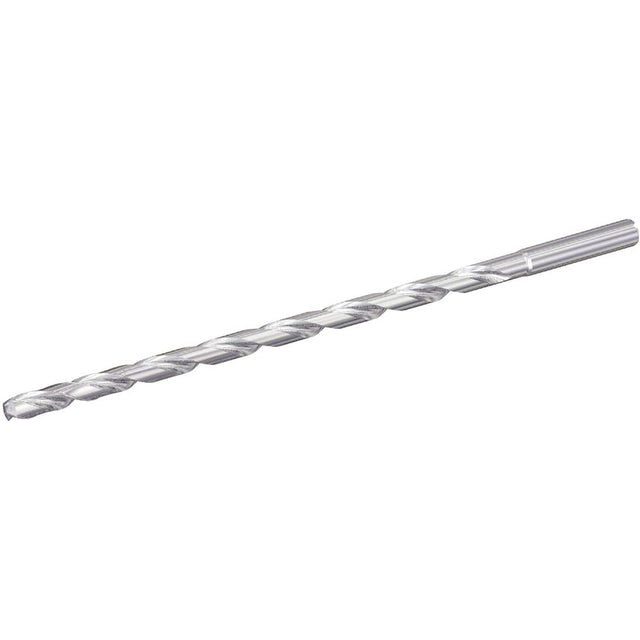

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Flute Length | 110mm | 110.0000mm |
| Unit Measured | Metric |
| Assembly Length | 134.691mm |
| Coolant Supplied | Yes |
| Number of Flutes | 2 |
| MFR Part No. | 6351309 |
| Shank Length | 34.0000mm |
| Material | Carbide |
| Drill Depth | 99mm | 99.0000mm |
| Finish/Coating | Uncoated |
| Adapter Type | Cylindrical |
| Drill Point | 0.809mm |
| Helix Angle | 28.807 |
| Hand Preference | Right |
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Overall Length | 149mm | 149.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 4.7630mm |
| Functional Length | 148.1910mm |
| Adapter Style | Straight-Cylindrical |
| Primary Material | Steel |
| Flute Construction | Helical Flute |
| Coolant Diameter | 0.4900mm (0.0945in) |
| Adapter / Shank / Bore Diameter | 5.0000mm |
