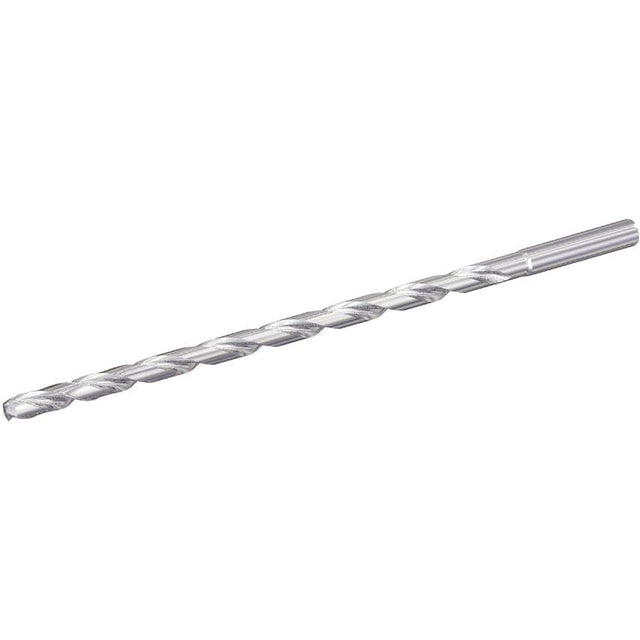

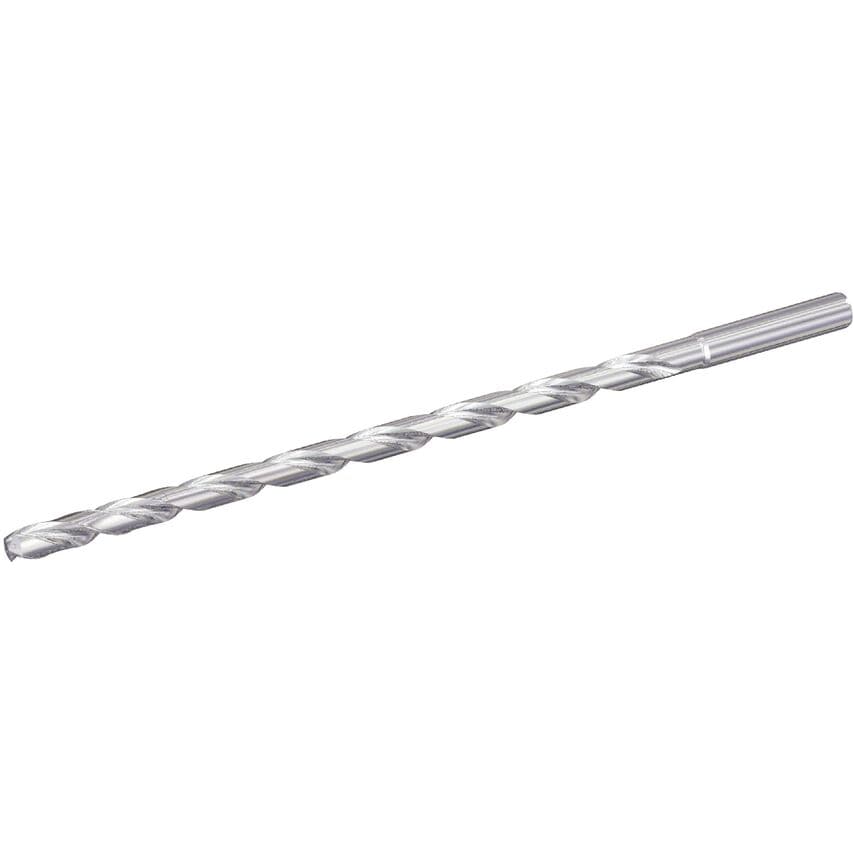

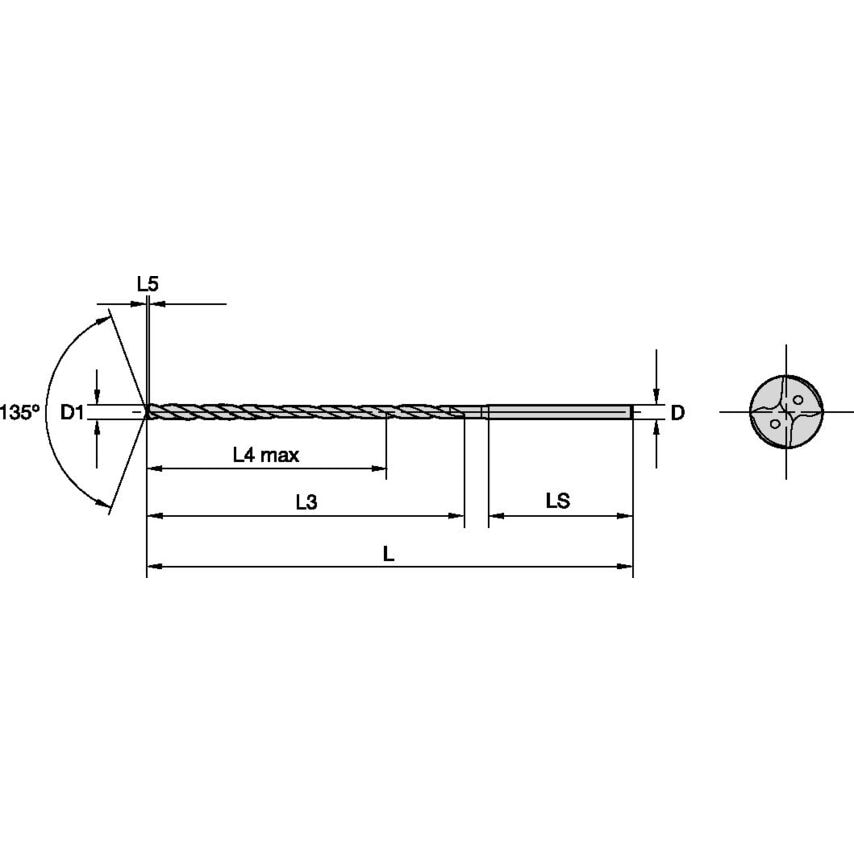

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Number of Flutes | 2 |
| Primary Material | Steel |
| Adapter Style | Straight-Cylindrical |
| Unit Measured | Metric |
| Adapter / Shank / Bore Diameter | 15.0000mm |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Shank Length | 54.0000mm |
| Flute Length | 328mm | 328.0000mm |
| Coolant Diameter | 2.2400mm (0.0276in) |
| Adapter Type | Cylindrical |
| MFR Part No. | 6351412 |
| Finish/Coating | Uncoated |
| Drill Diameter | 14.5000mm |
| Drill Point | 2.46mm |
| Functional Length | 386.5400mm |
| Flute Construction | Helical Flute |
| Coolant Supplied | Yes |
| Overall Length | 389mm | 389.0000mm |
| Drill Depth | 297mm | 297.0000mm |
| Hand Preference | Right |
| Helix Type | Right Hand Helix/Flute |
| Assembly Length | 344.54mm |
| Helix Angle | 29.166 |
| Material | Carbide |
