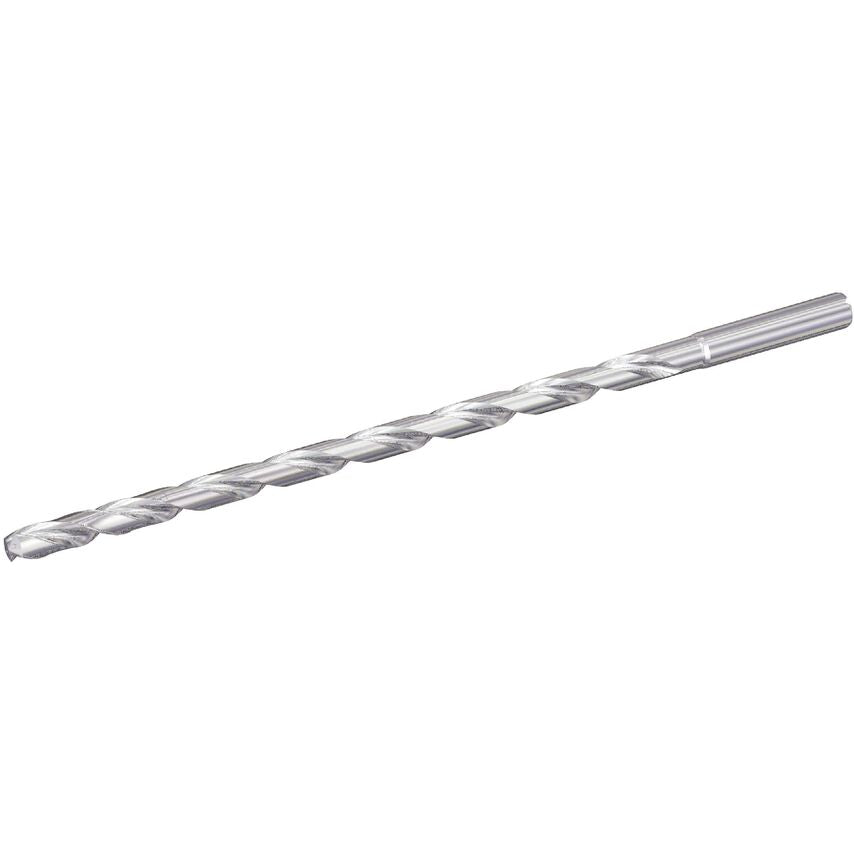

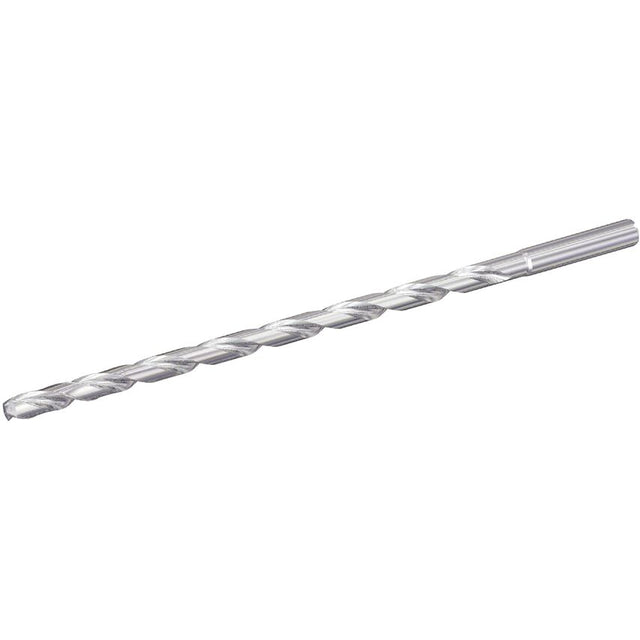

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Functional Length | 410.3700mm |
| Drill Depth | 317mm | 317.0000mm |
| Primary Material | Steel |
| Coolant Supplied | Yes |
| MFR Part No. | 6351418 |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Flute Construction | Helical Flute |
| Finish/Coating | Uncoated |
| Coolant Diameter | 2.2400mm (0.0276in) |
| Assembly Length | 368.37mm |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Adapter Type | Cylindrical |
| Shank Length | 56.0000mm |
| Material | Carbide |
| Flute Length | 350mm | 350.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Helix Angle | 28.630 |
| Unit Measured | Metric |
| Number of Flutes | 2 |
| Overall Length | 413mm | 413.0000mm |
| Drill Point | 2.63mm |
| Hand Preference | Right |
| Drill Diameter | 15.5000mm |
