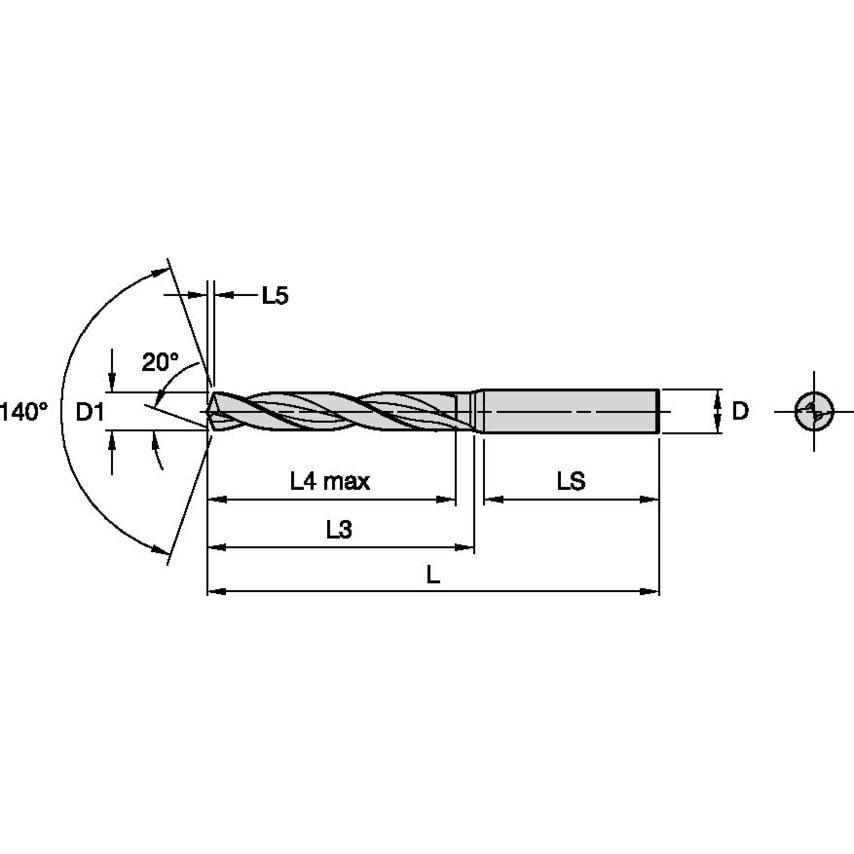

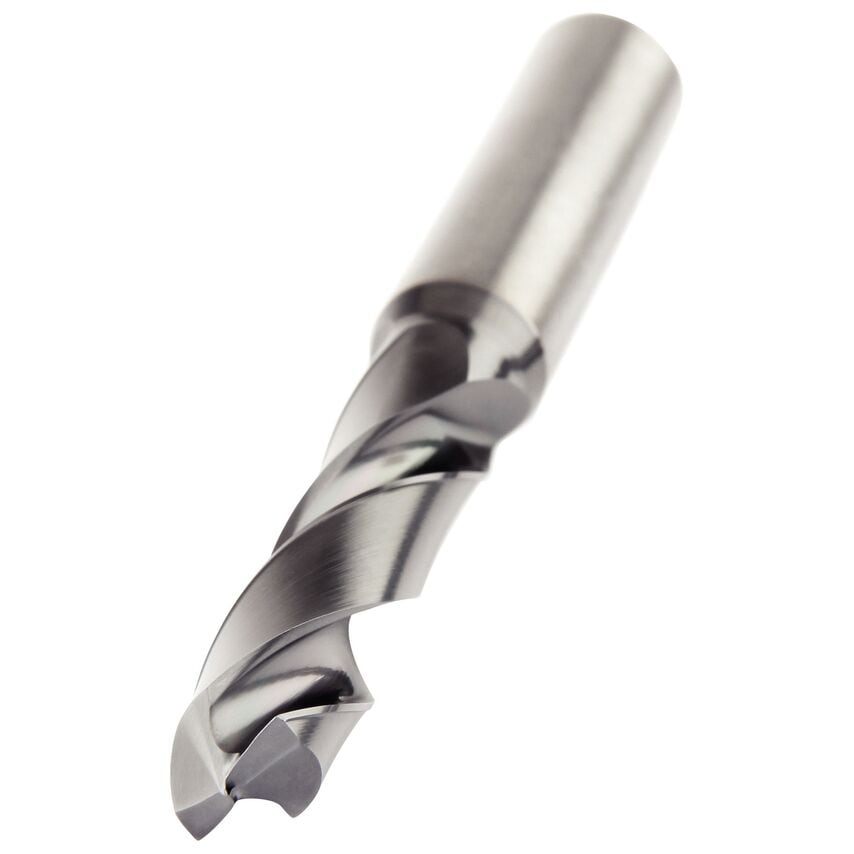

HPX B222 5 x DHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| MFR Part No. | 6781494 |
| Assembly Length | 62.62mm |
| Flute Construction | Helical Flute |
| Functional Length | 89.6200mm |
| Shank Length | 36.0000mm |
| Flute Length | 53mm | 53.0000mm |
| Material | Carbide |
| Overall Length | 91mm | 91.0000mm |
| Adapter Type | Cylindrical |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Finish/Coating | TiN/AlTiN |
| Helix Type | Right Hand Helix/Flute |
| Drill Depth | 43mm | 43.0000mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Coolant Supplied | No |
| Number of Flutes | 2 |
| Drill Diameter | 6.3500mm |
| Drill Point | 1.38mm |
| Helix Angle | 26.507 |
| Primary Material | Steel |
