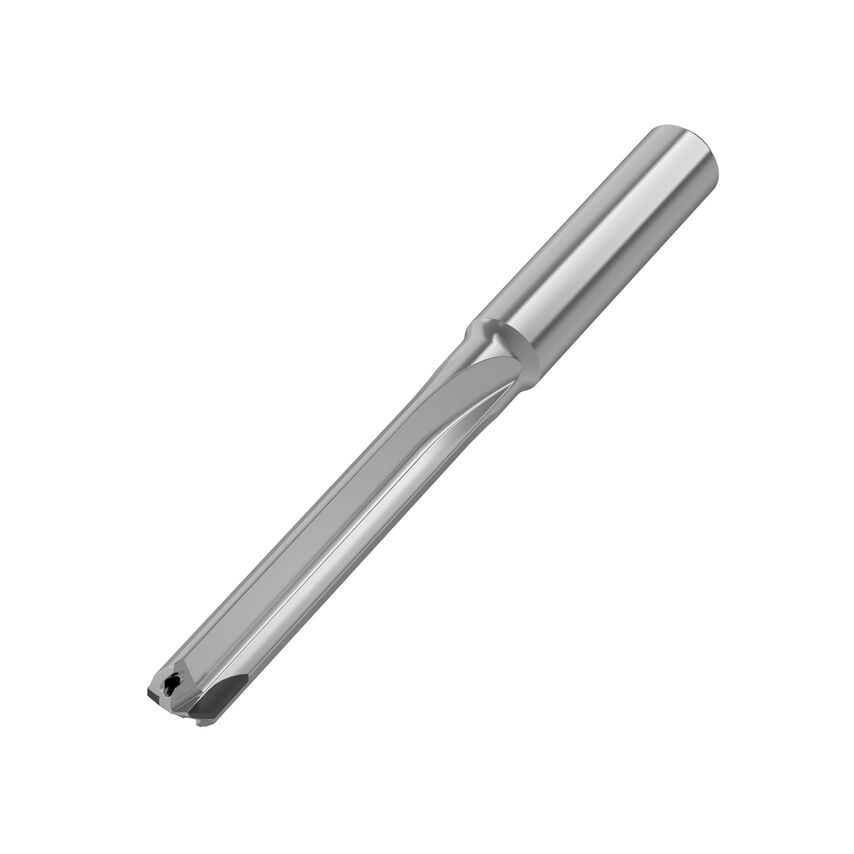

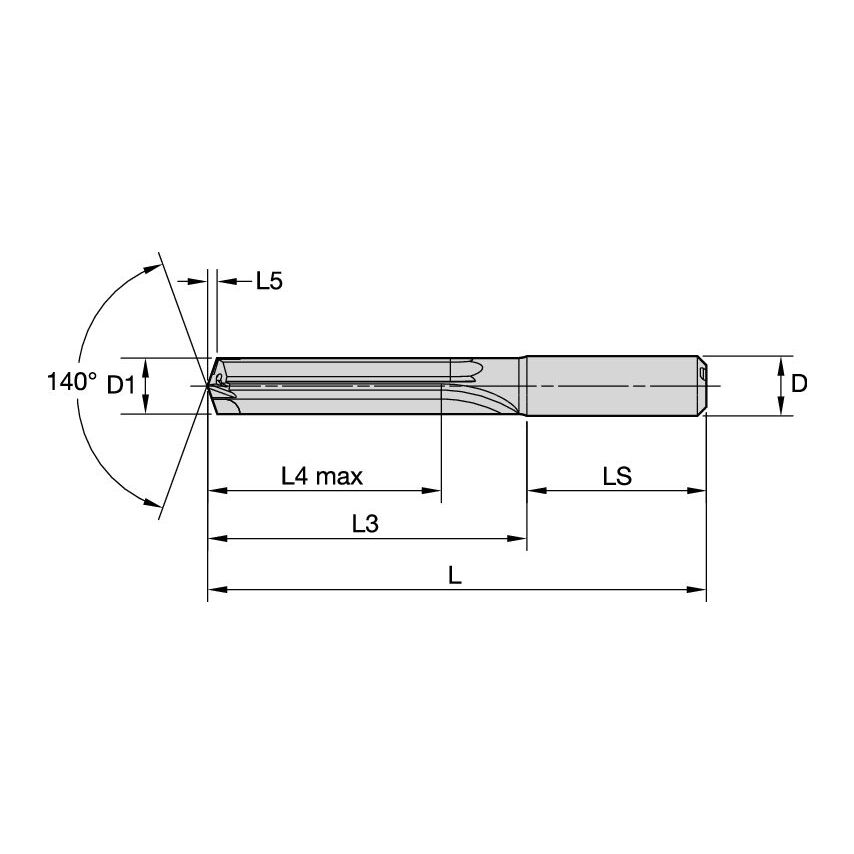

PCD Drill B467 5 x D Internal CoolantSolid Carbide Drills
| Adapter Style | Straight-Cylindrical |
| Drill Depth | 56mm | 56.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 41mm | 41.0000mm |
| Assembly Length | 74.04mm |
| Number of Flutes | 2 |
| MFR Part No. | 6761179 |
| Primary Material | Non-Ferrous Materials |
| Adapter Type | Cylindrical |
| Coolant Supplied | Yes |
| Drill Point | 1.96mm |
| Shank Length | 45.0000mm |
| Finish/Coating | Uncoated |
| Unit Measured | Metric |
| Overall Length | 118mm | 118.0000mm |
| Drill Diameter | 11.5000mm |
| Flute Construction | Straight Flute |
| Functional Length | 116.0400mm |
| Material | Carbide |
| Hand Preference | Right |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
