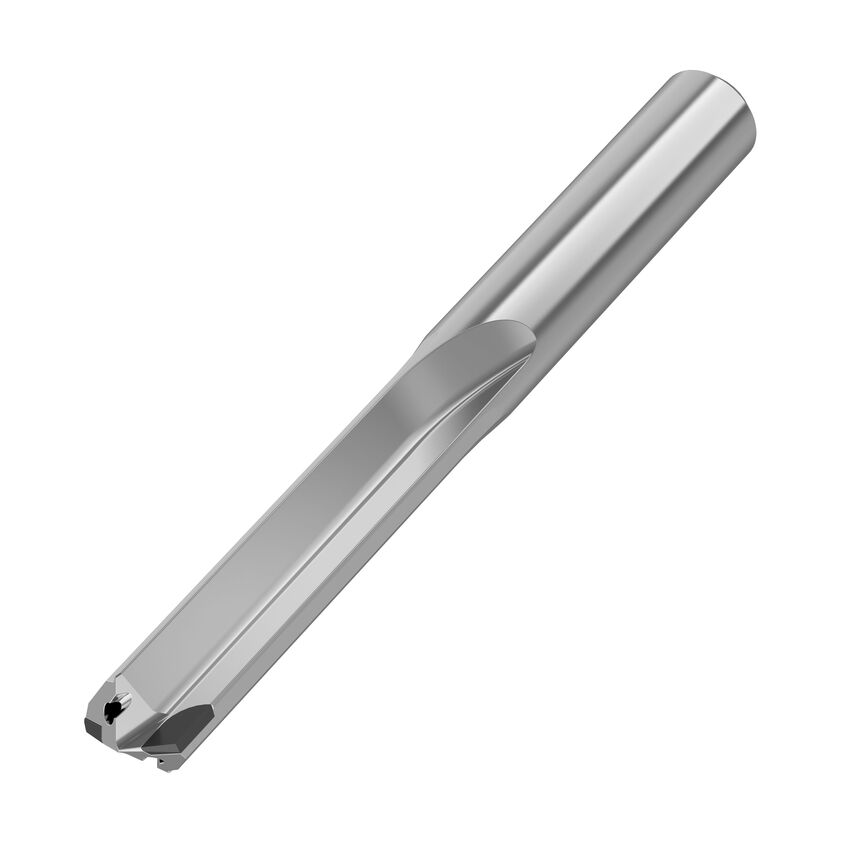

PCD Drill K467 5 x D Internal CoolantSolid Carbide Drills
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Adapter Style | Straight-Cylindrical |
| Drill Diameter Tolerance | 0.000390 to 0.010000mm |
| Drill Point | 1.47mm |
| Material | Carbide |
| Primary Material | Non-Ferrous Materials |
| Functional Length | 101.5300mm |
| Assembly Length | 65.005mm |
| Adapter / Shank / Bore Diameter | 9.525mm | 9.5250mm |
| Flute Construction | Straight Flute |
| MFR Part No. | 6761212 |
| Hand Preference | Right |
| Drill Diameter | 8.7300mm |
| Coolant Supplied | Yes |
| Unit Measured | Imperial |
| Flute Length | 60.5mm | 60.5000mm |
| Drill Depth | 48.7mm | 48.7000mm |
| Number of Flutes | 2 |
| Shank Length | 40.5000mm |
| Overall Length | 103mm | 103.0000mm |
| Helix Type | Right Hand Helix/Flute |
