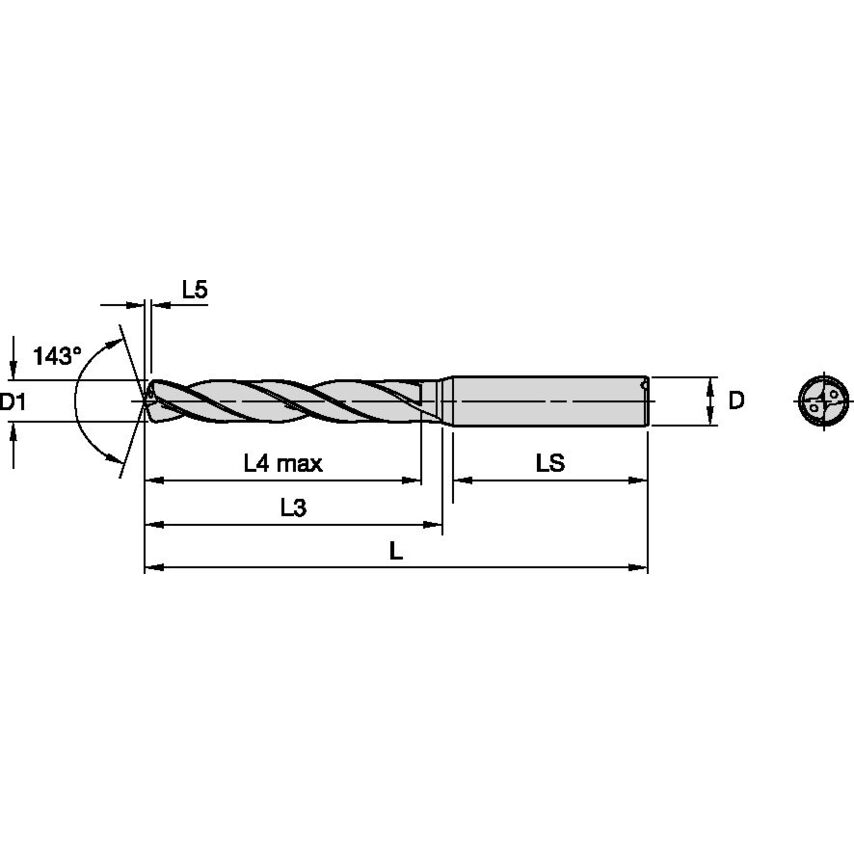

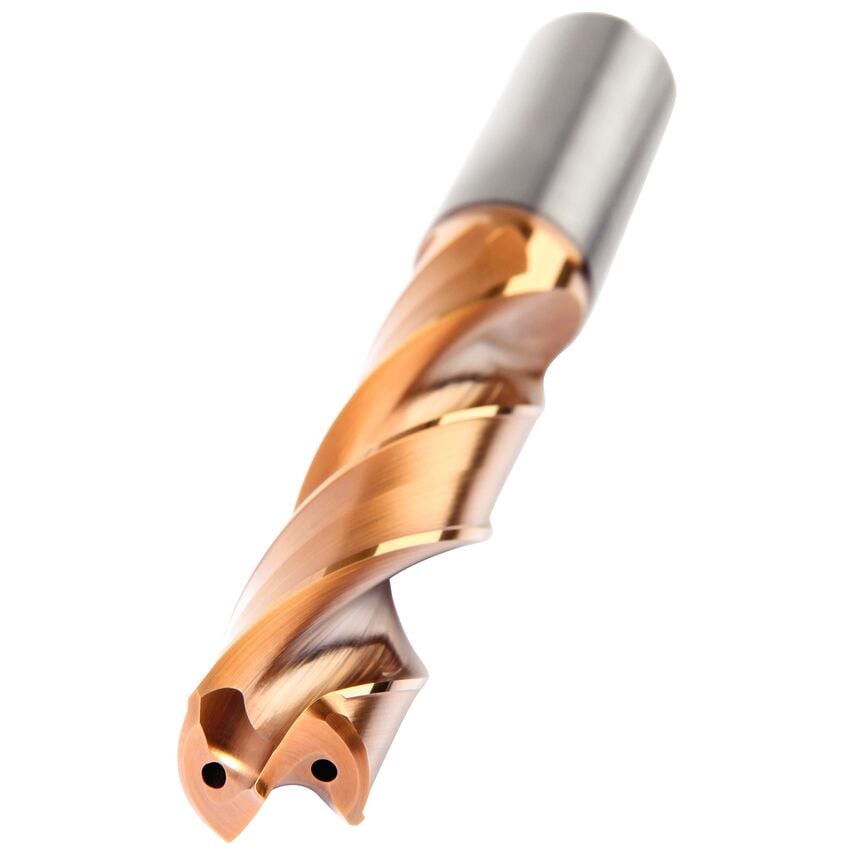

HPR B255 5 x D Internal CoolantSolid Carbide Drills
| Unit Measured | Metric |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 101mm | 101.0000mm |
| Assembly Length | 97.42mm |
| Adapter / Shank / Bore Diameter | 20.0000mm |
| Drill Diameter | 19.0000mm |
| Adapter Type | Cylindrical |
| MFR Part No. | 6783335 |
| Overall Length | 153mm | 153.0000mm |
| Primary Material | Cast Iron |
| Functional Length | 147.4200mm |
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Coolant Diameter | 2.4000mm (0.0220in) |
| Drill Point | 5.58mm |
| Drill Depth | 77mm | 77.0000mm |
| Shank Length | 50.0000mm |
| Flute Construction | Helical Flute |
| Number of Flutes | 2 |
| Coolant Supplied | Yes |
| Material | Carbide |
| Finish/Coating | AlTiN |
| Drill Diameter Tolerance | 0.008000 to 0.029000mm |
| Helix Angle | 28.269 |
