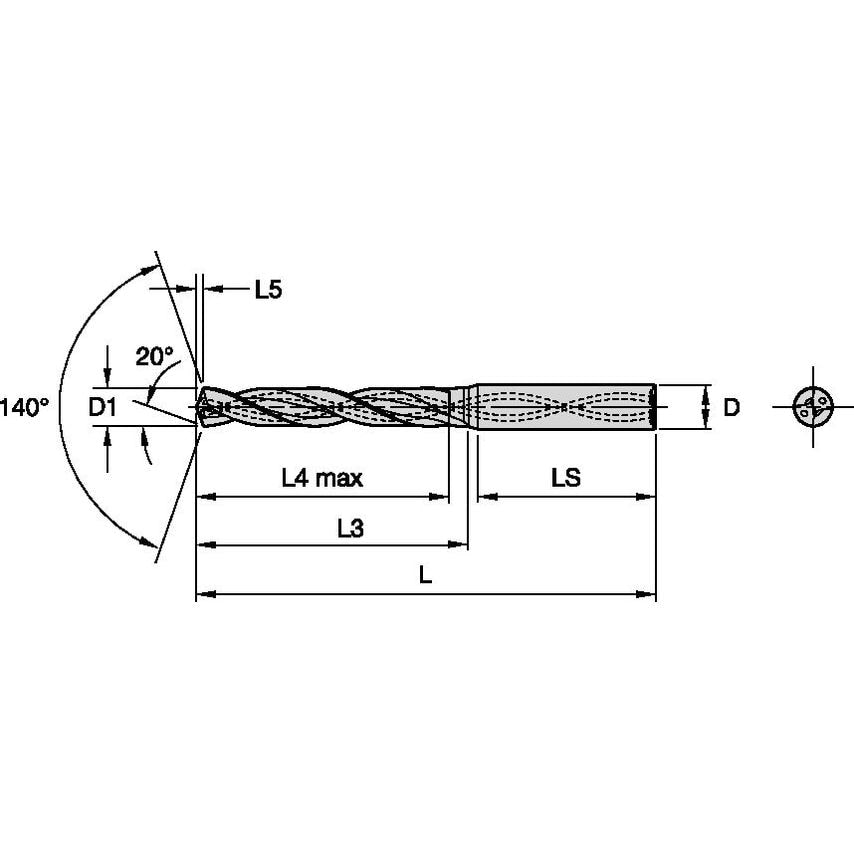

HPX B226 8 x D Through CoolantHigh-Performance Solid Carbide Drills
| Flute Length | 92mm | 92.0000mm |
| Assembly Length | 96.605mm |
| Shank Length | 40.0000mm |
| Coolant Diameter | 1.2800mm (0.0472in) |
| Overall Length | 135mm | 135.0000mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| MFR Part No. | 6782387 |
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Adapter Type | Cylindrical |
| Unit Measured | Metric |
| Flute Construction | Helical Flute |
| Helix Type | Right Hand Helix/Flute |
| Drill Diameter | 8.7330mm |
| Finish/Coating | TiN/AlTiN |
| Number of Flutes | 2 |
| Primary Material | Steel |
| Drill Depth | 80mm | 80.0000mm |
| Drill Point | 1.87mm |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Functional Length | 133.1300mm |
| Helix Angle | 28.278 |
| Coolant Supplied | Yes |
| Material | Carbide |
