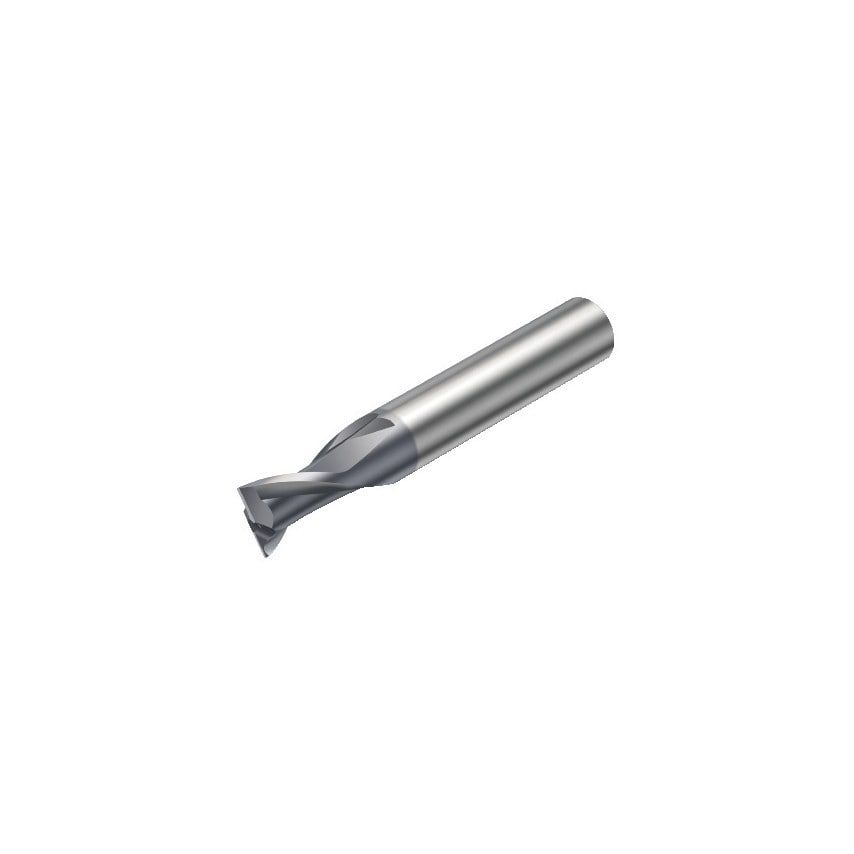

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Product Type | CoroMill Plura End Mill |
| MFR Part No. | 26259540 |
| Grade | 1630 |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 9.5mm |
| Connection Diameter | 8mm |
| Maximum Ramping Angle | 9\u00b0 |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Maximum Cutting Depth | 9.5mm |
| Center Cutting Capability | Yes |
| Coating Type | AlCrN |
| Unit Measured | Metric |
| Standards Met | DIN 6527 K |
| Functional Length | 58mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 12.2 |
| Shank Type | Weldon |
| Coolant Entry Style | Without Coolant |
| Usable Length | 9.5mm |
| Cutting Diameter | 8mm |
| Basic Standard Group | DIN 6527 K |
| Rotational Speed Maximum | 80000 1/min |
| Coating Process Type | PVD |
