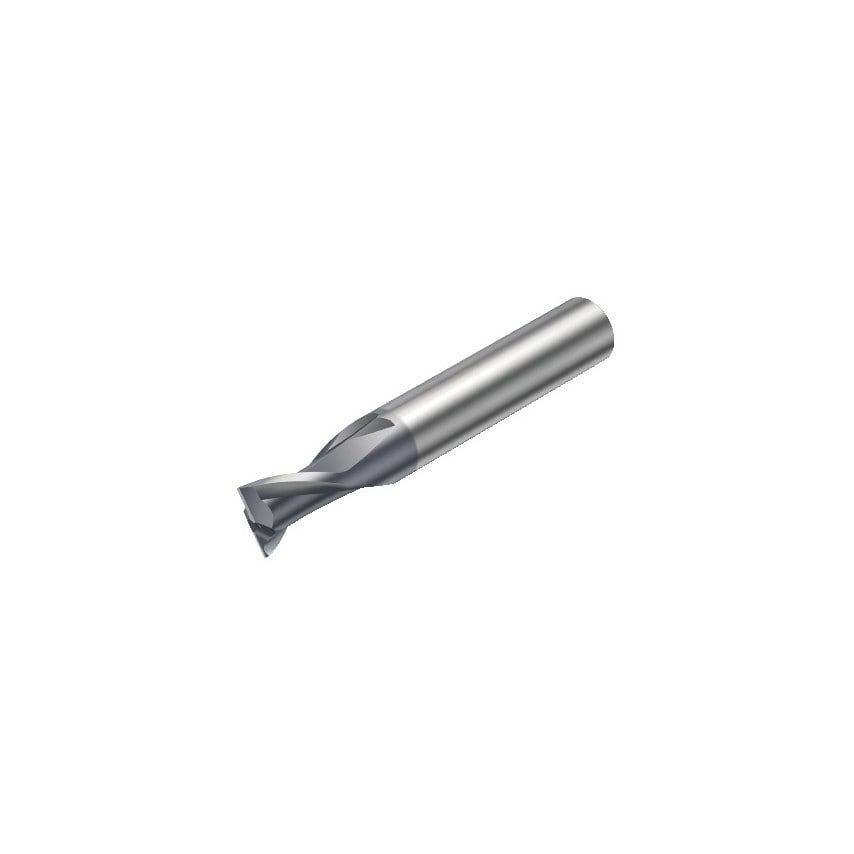

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 10.5mm |
| Cutting Diameter | 9mm |
| CoroPak | 12.2 |
| Weight | 72.6g |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | DIN 6527 K |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Grade | 1630 |
| Coating Type | AlCrN |
| Material | Solid Carbide |
| Product Type | CoroMill Plura End Mill |
| MFR Part No. | 26259541 |
| Coolant Entry Style | Without Coolant |
| Standards Met | DIN 6527 K |
| Maximum Ramping Angle | 9\u00b0 |
| Shank Type | Weldon |
| Through Hole Function Property | Yes |
| Functional Length | 66mm |
| Maximum Cutting Depth | 10.5mm |
| Body Half Taper Angle | 30\u00b0 |
| Maximum Depth of Cut | 10.5mm |
| Finish/Coating | AlCrN |
| Unit Measured | Metric |
| Connection Diameter | 25mm |
| Coating Process Type | PVD |
