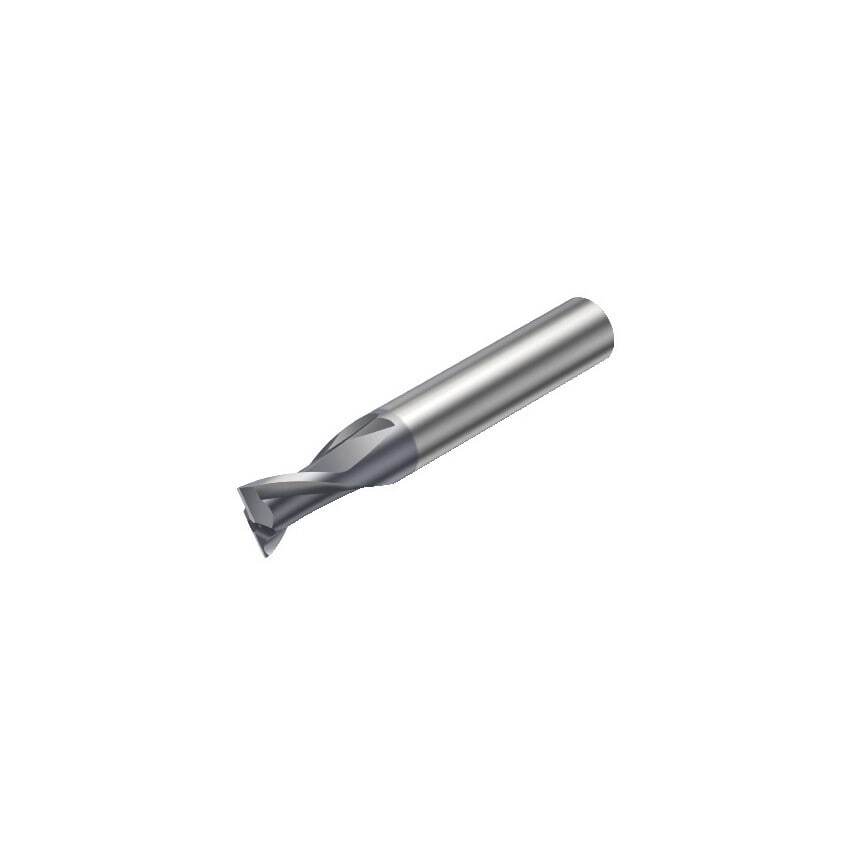

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 18.5mm |
| CoroPak | 12.2 |
| Center Cutting Capability | Yes |
| Coating Type | AlCrN |
| Shank Type | Weldon |
| Cutting Diameter | 17.7mm |
| Maximum Ramping Angle | 9\u00b0 |
| Standards Met | DIN 6527 K |
| Finish/Coating | AlCrN |
| Product Type | CoroMill Plura End Mill |
| Rotational Speed Maximum | 31200 1/min |
| Through Hole Function Property | Yes |
| Grade | 1630 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 6527 K |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 18.5mm |
| Material | Solid Carbide |
| MFR Part No. | 26259516 |
| Connection Diameter | 18mm |
| Functional Length | 84mm |
| Maximum Depth of Cut | 18.5mm |
| Weight | 285.5g |
