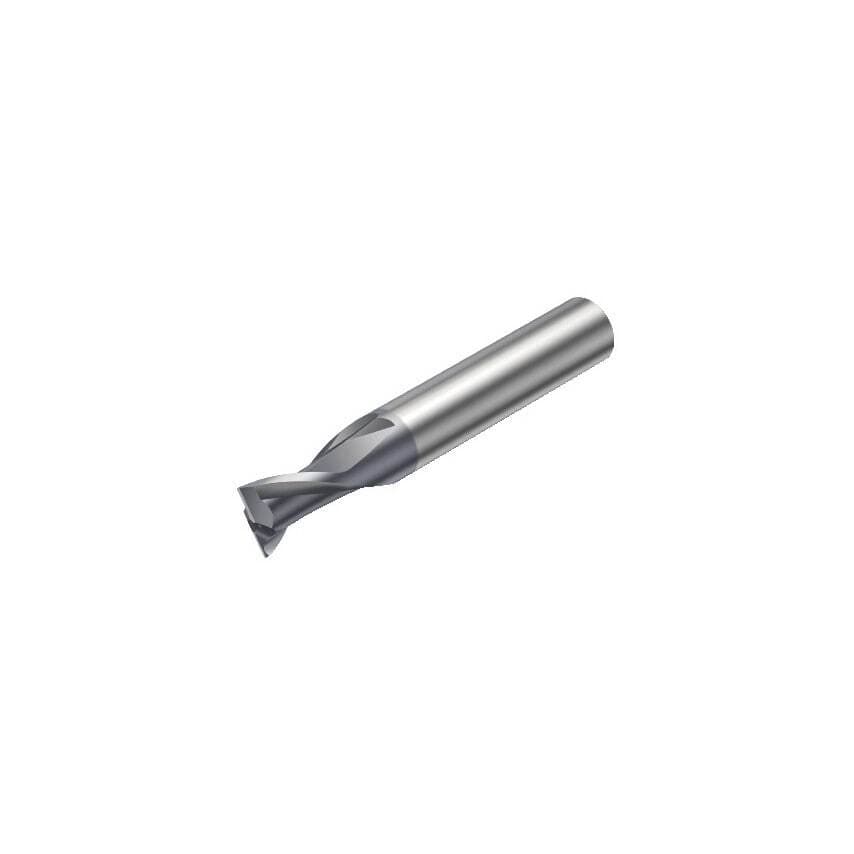

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Cutting Diameter | 14mm |
| Usable Length | 14.5mm |
| Connection Diameter | 14mm |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 57700 1/min |
| Maximum Ramping Angle | 9\u00b0 |
| Weight | 0.17kg |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 14.5mm |
| Product Type | CoroMill Plura End Mill |
| Standards Met | DIN 6527 K |
| Maximum Depth of Cut | 14.5mm |
| Basic Standard Group | DIN 6527 K |
| Finish/Coating | AlCrN |
| Shank Type | Cylindrical |
| MFR Part No. | 26259508 |
| Coating Type | AlCrN |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Grade | 1630 |
| Functional Length | 75mm |
| CoroPak | 12.2 |
