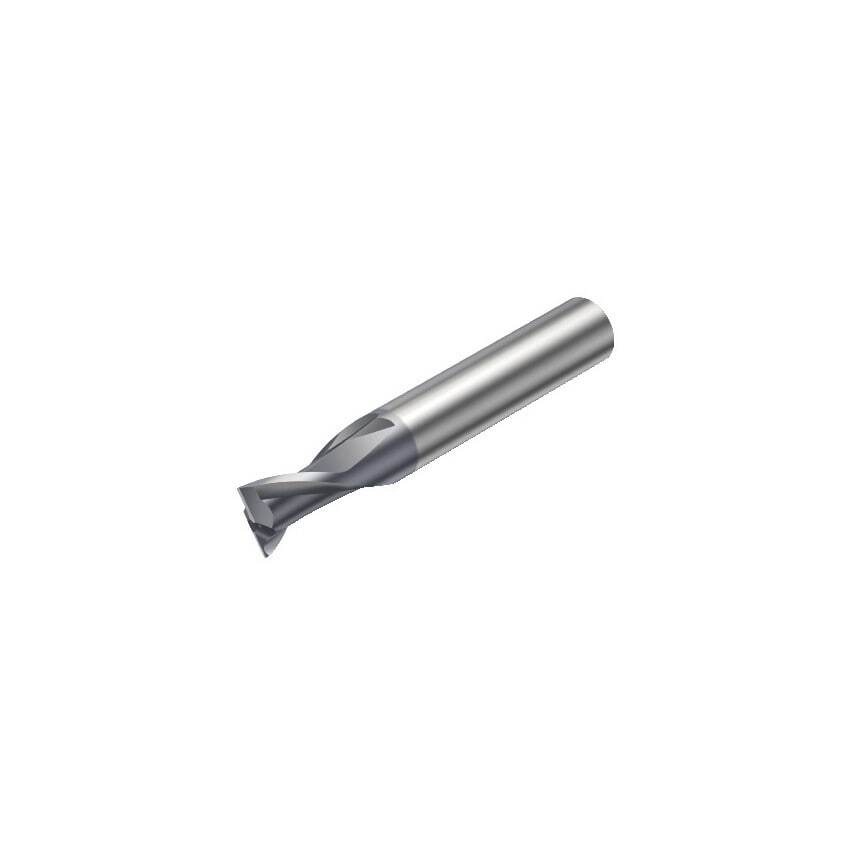

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Functional Length | 66mm |
| Shank Type | Cylindrical |
| Coating Type | AlCrN |
| Usable Length | 11.5mm |
| Grade | 1630 |
| Product Type | CoroMill Plura End Mill |
| Cutting Diameter | 9.7mm |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 26259487 |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 9\u00b0 |
| Unit Measured | Metric |
| CoroPak | 12.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | DIN 6527 K |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN 6527 K |
| Finish/Coating | AlCrN |
| Material | Carbide |
| Maximum Cutting Depth | 11.5mm |
| Maximum Depth of Cut | 11.5mm |
| Connection Diameter | 25mm |
| Center Cutting Capability | Yes |
