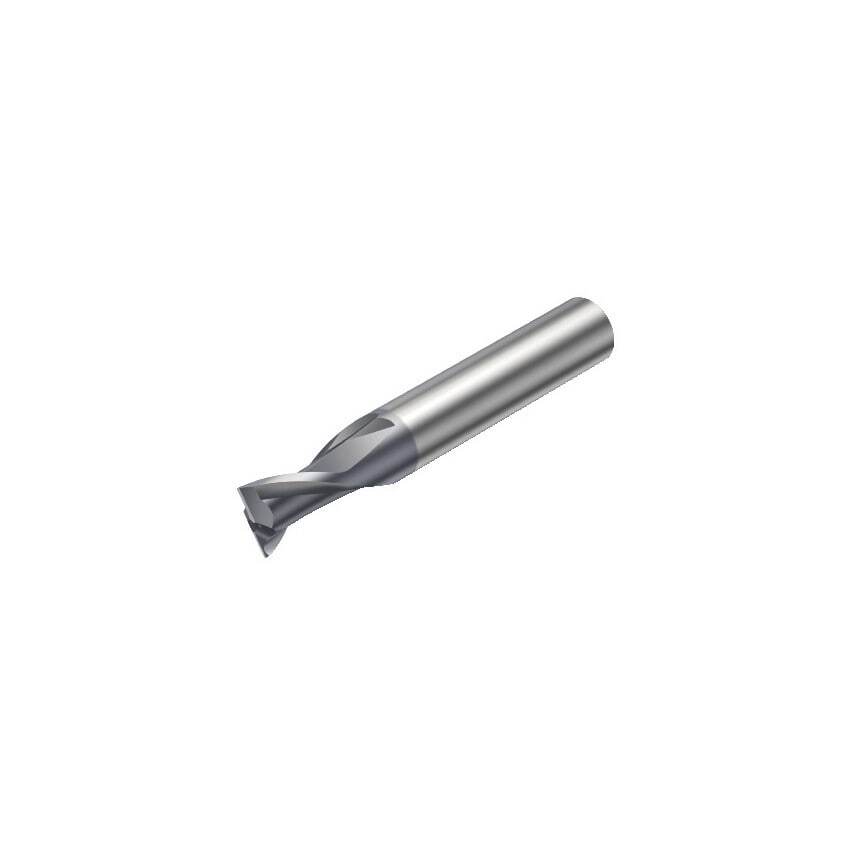

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 12.2 |
| Usable Length | 16.5mm |
| Shank Type | Weldon |
| Maximum Depth of Cut | 16.5mm |
| Weight | 0.23kg |
| Coating Type | AlCrN |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 9\u00b0 |
| Basic Standard Group | DIN 6527 K |
| Standards Met | DIN 6527 K |
| Maximum Cutting Depth | 16.5mm |
| Functional Length | 82mm |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 15.7mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1630 |
| MFR Part No. | 26259522 |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| Rotational Speed Maximum | 40400 1/min |
| Connection Diameter | 16mm |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Product Type | CoroMill Plura End Mill |
| Through Hole Function Property | Yes |
