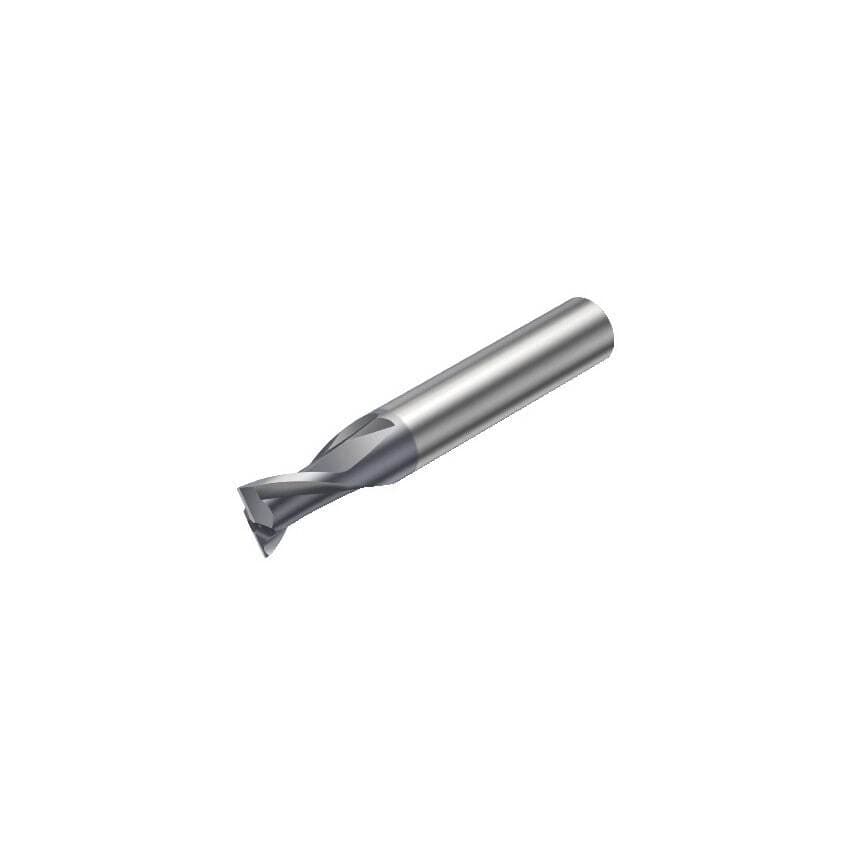

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Shank Type | Cylindrical |
| Grade | 1630 |
| Usable Length | 11.5mm |
| Maximum Cutting Depth | 11.5mm |
| Connection Diameter | 10mm |
| Through Hole Function Property | Yes |
| Standards Met | DIN 6527 K |
| Product Type | CoroMill Plura End Mill |
| Maximum Ramping Angle | 9\u00b0 |
| Basic Standard Group | DIN 6527 K |
| Cutting Diameter | 10mm |
| Material | Carbide |
| CoroPak | 12.2 |
| Functional Length | 66mm |
| Finish/Coating | AlCrN |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 11.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 26259504 |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
