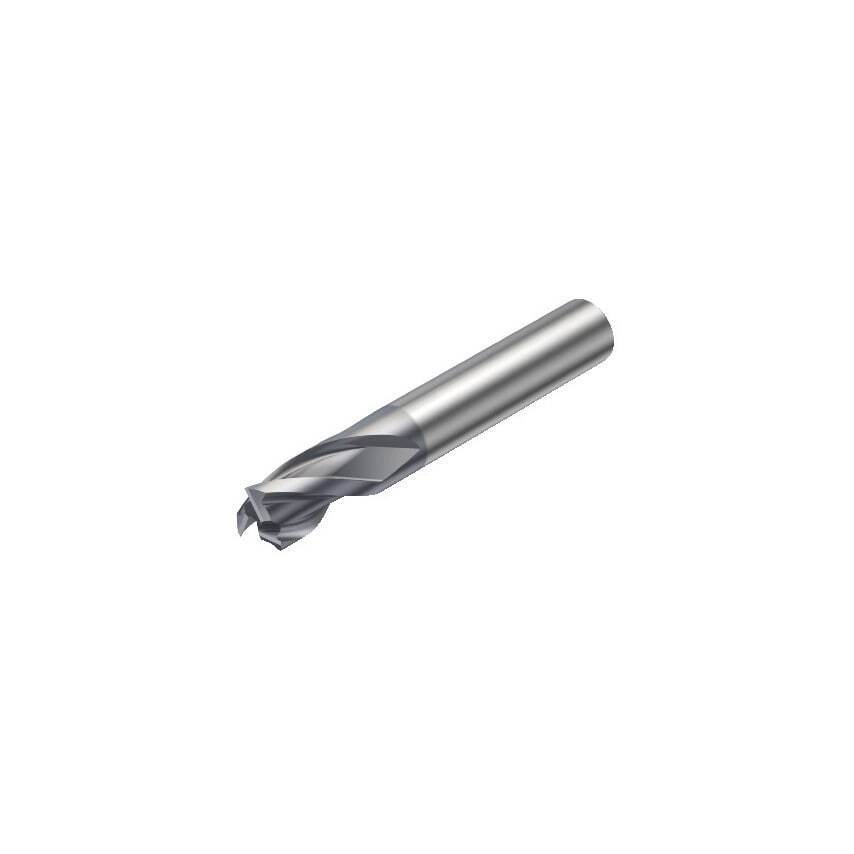

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26259579 |
| Functional Length | 92mm |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | DIN 6527 K |
| Finish/Coating | AlCrN |
| Unit Measured | Metric |
| Usable Length | 20.5mm |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 19100 1/min |
| Weight | 0.39kg |
| Grade | 1630 |
| Maximum Cutting Depth | 20.5mm |
| Center Cutting Capability | Yes |
| Basic Standard Group | DIN 6527 K |
| Maximum Depth of Cut | 20.5mm |
| CoroPak | 12.2 |
| Through Hole Function Property | Yes |
| Connection Diameter | 20mm |
| Shank Type | Weldon |
| Coating Type | AlCrN |
| Product Type | CoroMill Plura End Mill |
| Cutting Diameter | 20mm |
| Maximum Ramping Angle | 8\u00b0 |
