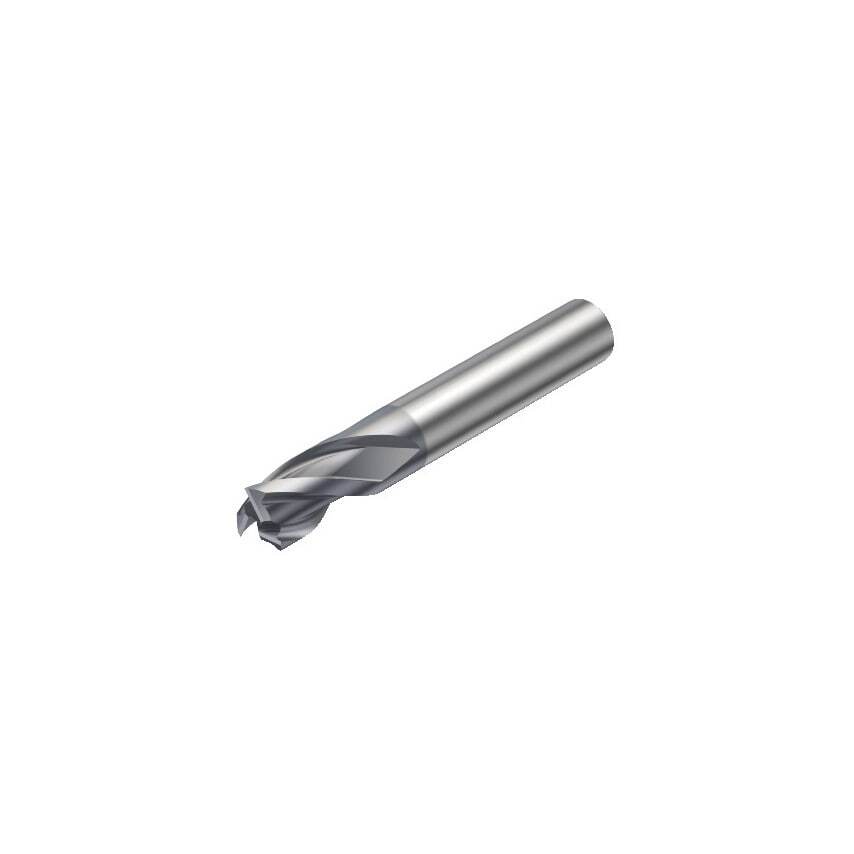

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 14.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 8\u00b0 |
| Coating Type | AlCrN |
| Connection Diameter | 14mm |
| Maximum Depth of Cut | 14.5mm |
| Functional Length | 75mm |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| Basic Standard Group | DIN 6527 K |
| Weight | 0.17kg |
| Grade | 1630 |
| Rotational Speed Maximum | 48300 1/min |
| Unit Measured | Metric |
| Product Type | CoroMill Plura End Mill |
| Cutting Diameter | 14mm |
| MFR Part No. | 26259554 |
| Finish/Coating | PVD |
| Standards Met | DIN 6527 K |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Usable Length | 14.5mm |
