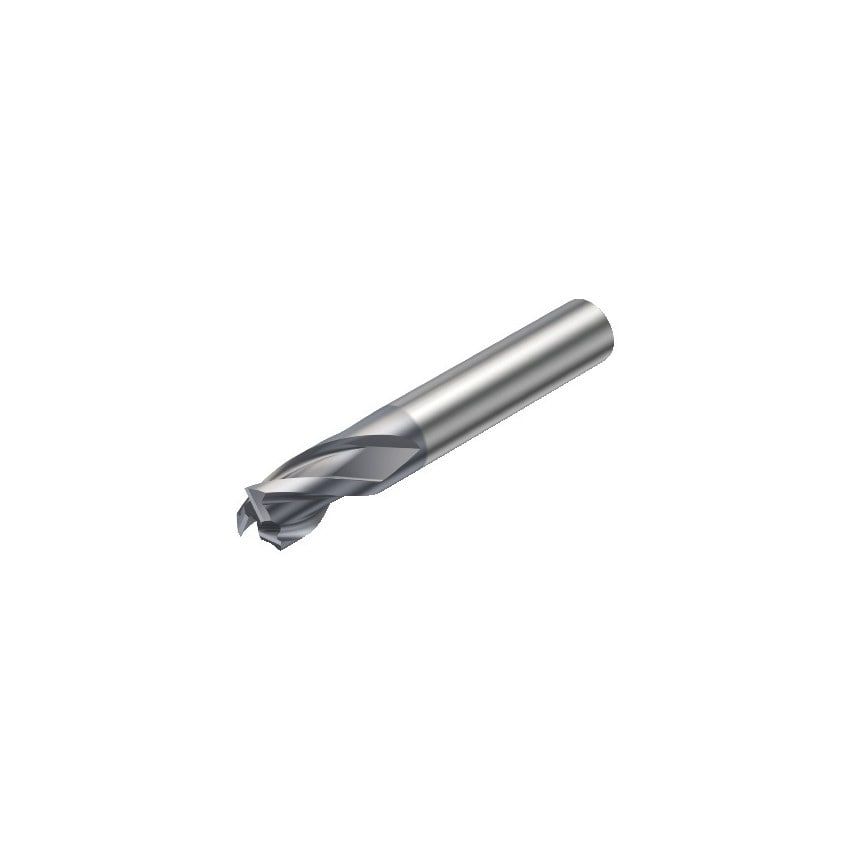

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 10.5mm |
| Maximum Ramping Angle | 8\u00b0 |
| Maximum Depth of Cut | 10.5mm |
| Body Half Taper Angle | 30\u00b0 |
| Finish/Coating | AlCrN |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| MFR Part No. | 26259572 |
| Basic Standard Group | DIN 6527 K |
| Through Hole Function Property | Yes |
| Functional Length | 66mm |
| Coolant Entry Style | Without Coolant |
| Product Type | CoroMill Plura End Mill |
| Coating Process Type | PVD |
| Connection Diameter | 10mm |
| Cutting Diameter | 9mm |
| Rotational Speed Maximum | 80000 1/min |
| Coating Type | AlCrN |
| Material | Solid Carbide |
| Grade | 1630 |
| Standards Met | DIN 6527 K |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Maximum Cutting Depth | 10.5mm |
