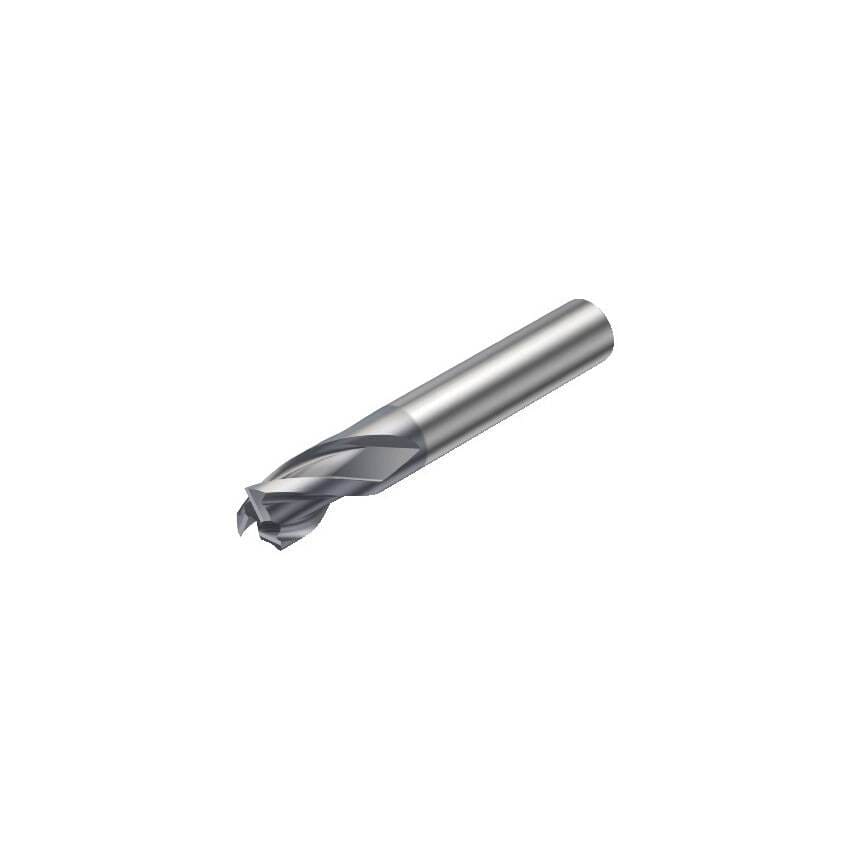

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Product Type | CoroMill Plura End Mill |
| Maximum Cutting Depth | 18.5mm |
| Functional Length | 84mm |
| Basic Standard Group | DIN 6527 K |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Shank Type | Cylindrical |
| Grade | 1630 |
| Maximum Ramping Angle | 8\u00b0 |
| Coating Type | AlCrN |
| Finish/Coating | AlCrN |
| Material | Solid Carbide |
| Connection Diameter | 63mm |
| Maximum Depth of Cut | 18.5mm |
| CoroPak | 12.2 |
| Rotational Speed Maximum | 26200 1/min |
| Weight | 0.3kg |
| Standards Met | DIN 6527 K |
| Center Cutting Capability | Yes |
| Usable Length | 18.5mm |
| Coating Process Type | PVD |
| MFR Part No. | 26259559 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 18mm |
| Coolant Entry Style | Without Coolant |
