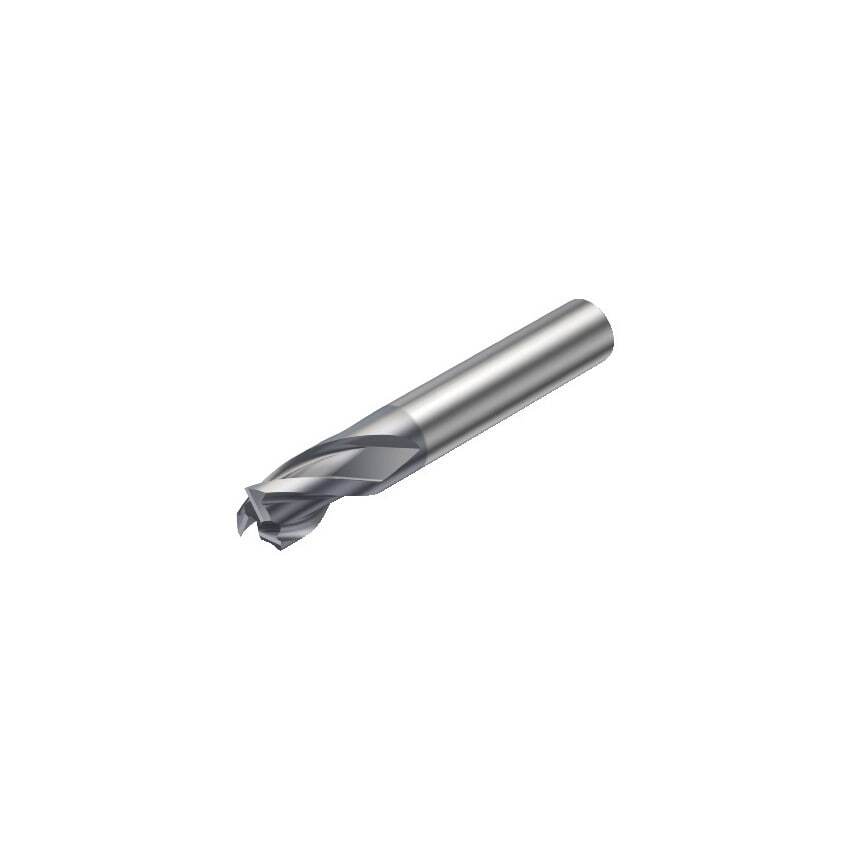

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Shank Type | Weldon |
| Cutting Diameter | 6.75mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 8.5mm |
| Product Type | CoroMill Plura End Mill |
| Finish/Coating | AlCrN |
| Unit Measured | Metric |
| Coating Type | AlCrN |
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Body Half Taper Angle | 30\u00b0 |
| Basic Standard Group | DIN 6527 K |
| Material | Solid Carbide |
| CoroPak | 12.2 |
| Maximum Cutting Depth | 8.5mm |
| Maximum Ramping Angle | 8\u00b0 |
| MFR Part No. | 26259589 |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 58mm |
| Grade | 1630 |
| Connection Diameter | 8mm |
| Standards Met | DIN 6527 K |
| Center Cutting Capability | Yes |
| Usable Length | 8.5mm |
