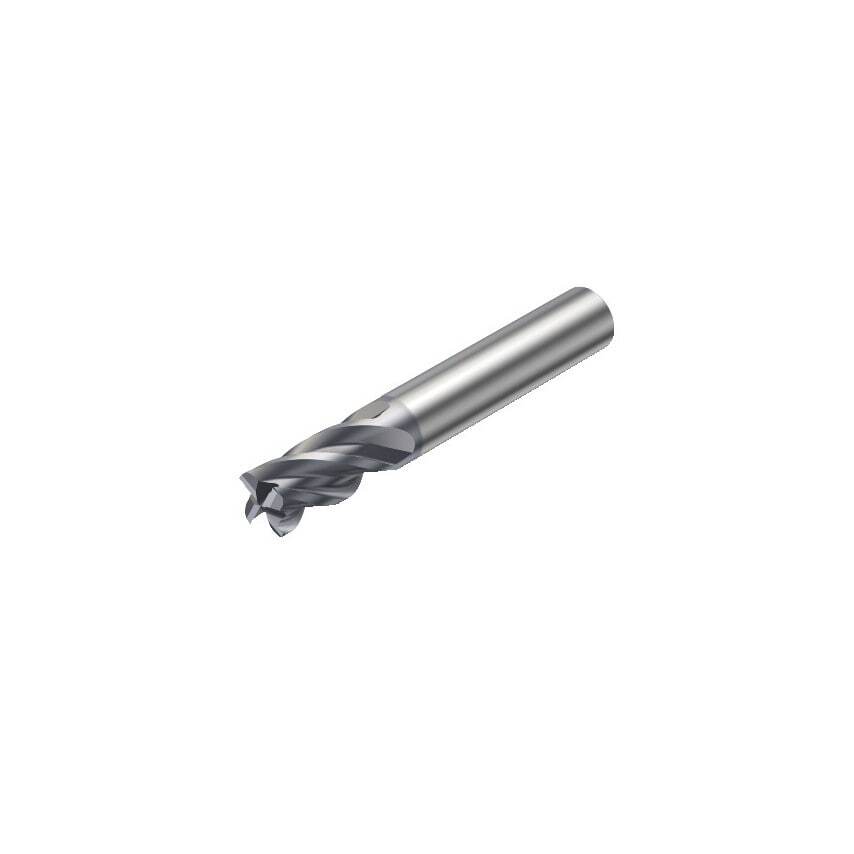

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Depth of Cut | 16.5mm |
| Center Cutting Capability | Yes |
| MFR Part No. | 26259606 |
| CoroPak | 12.2 |
| Grade | 1630 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | DIN 6527 K |
| Rotational Speed Maximum | 59000 1/min |
| Maximum Cutting Depth | 16.5mm |
| Cutting Diameter | 12mm |
| Weight | 0.12kg |
| Usable Length | 16.5mm |
| Product Type | CoroMill Plura End Mill |
| Coating Type | AlCrN |
| Connection Diameter | 32mm |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Shank Type | Cylindrical |
| Standards Met | DIN 6527 K |
| Functional Length | 73mm |
| Finish/Coating | AlCrN |
