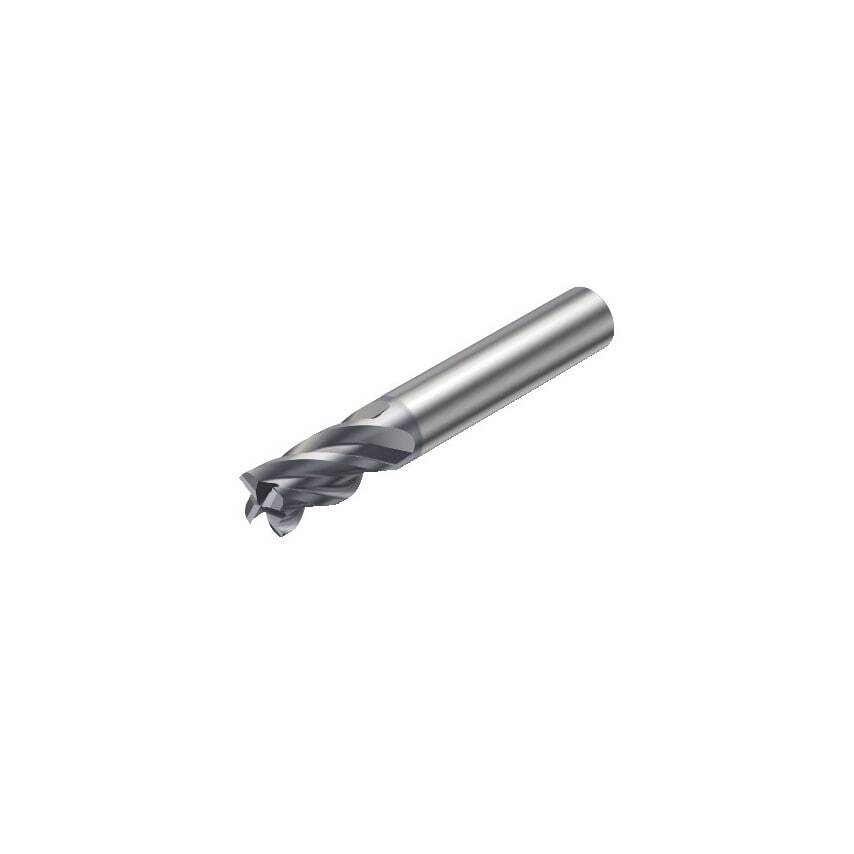

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Functional Length | 66mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Standards Met | DIN 6527 K |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| Cutting Diameter | 10mm |
| Product Type | CoroMill Plura End Mill |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Material | Carbide |
| Connection Diameter | 10mm |
| Maximum Cutting Depth | 14.5mm |
| MFR Part No. | 26259605 |
| Finish/Coating | AlCrN |
| Usable Length | 14.5mm |
| Grade | 1630 |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 6527 K |
| Maximum Depth of Cut | 14.5mm |
| Maximum Ramping Angle | 5\u00b0 |
