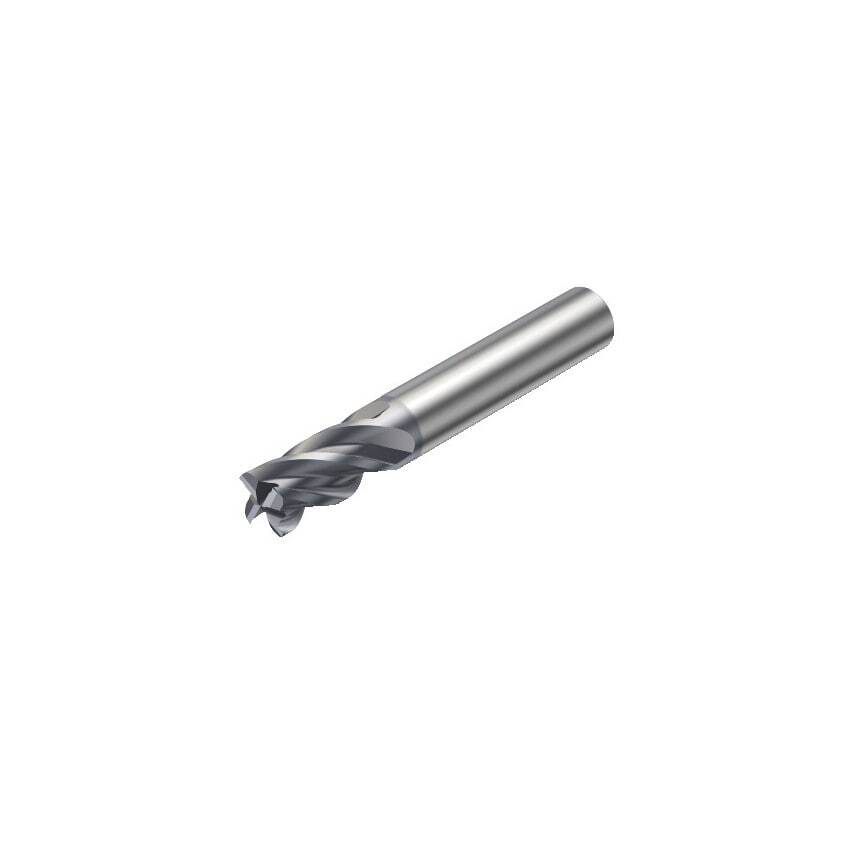

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26259618 |
| Cutting Diameter | 10mm |
| CoroPak | 12.2 |
| Coating Process Type | PVD |
| Product Type | CoroMill Plura End Mill |
| Usable Length | 14.5mm |
| Functional Length | 66mm |
| Material | Solid Carbide |
| Standards Met | DIN 6527 K |
| Shank Type | Weldon |
| Maximum Cutting Depth | 14.5mm |
| Coolant Entry Style | Without Coolant |
| Grade | 1630 |
| Connection Diameter | 10mm |
| Unit Measured | Metric |
| Maximum Depth of Cut | 14.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Finish/Coating | AlCrN |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 80000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | DIN 6527 K |
| Through Hole Function Property | Yes |
| Coating Type | AlCrN |
