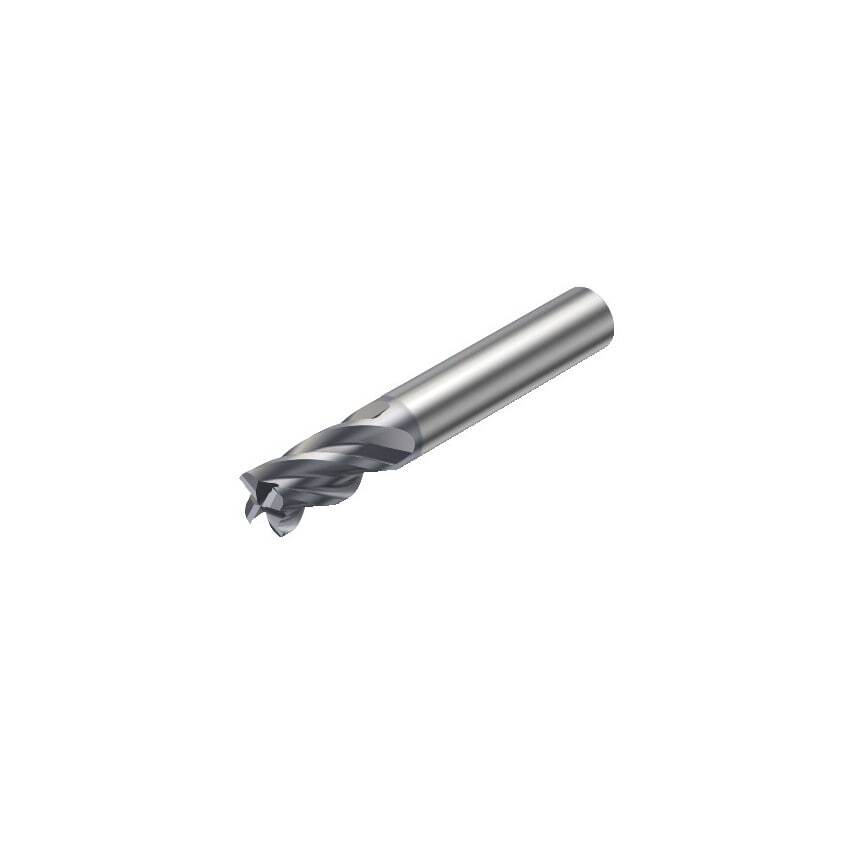

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 12.5mm |
| Coating Process Type | PVD |
| MFR Part No. | 26259620 |
| Coolant Entry Style | Without Coolant |
| Maximum Ramping Angle | 5\u00b0 |
| Functional Length | 58mm |
| CoroPak | 12.2 |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Material | Solid Carbide |
| Shank Type | Weldon |
| Connection Diameter | 100.1mm |
| Weight | 47.5g |
| Center Cutting Capability | Yes |
| Cutting Diameter | 8mm |
| Product Type | CoroMill Plura End Mill |
| Coating Type | AlCrN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 12.5mm |
| Grade | 1630 |
| Maximum Depth of Cut | 12.5mm |
| Finish/Coating | AlCrN |
| Standards Met | DIN 6527 K |
| Basic Standard Group | DIN 6527 K |
| Unit Measured | Metric |
