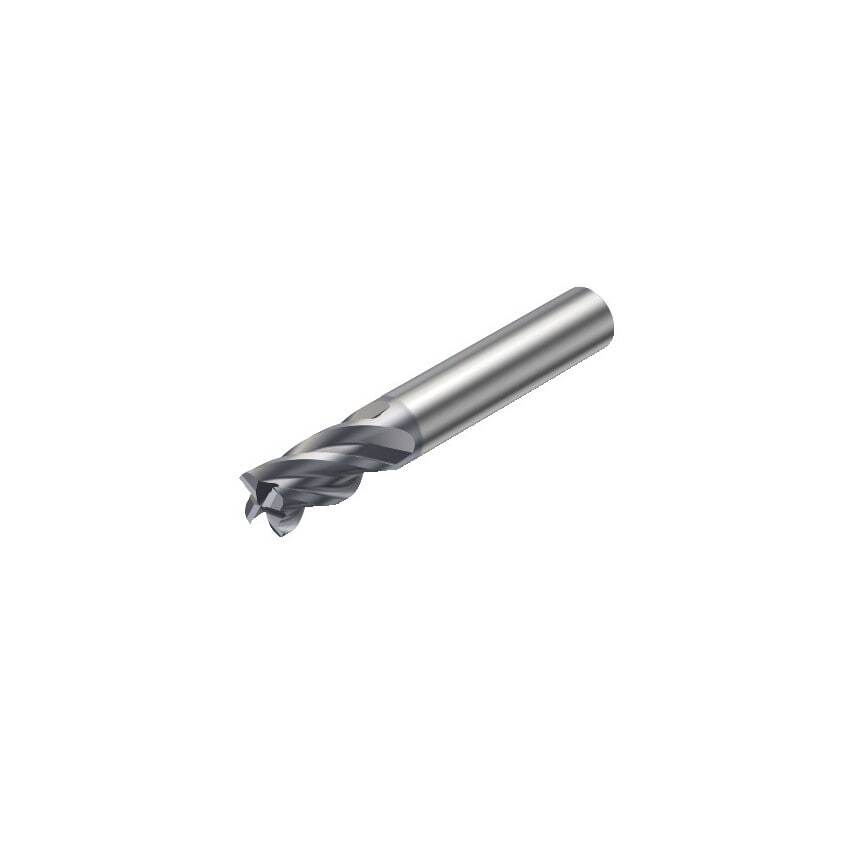

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 92mm |
| Weight | 0.38kg |
| Center Cutting Capability | Yes |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Standards Met | DIN 6527 K |
| Finish/Coating | AlCrN |
| Usable Length | 26.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | Without Coolant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 26.5mm |
| Connection Diameter | 80mm |
| Grade | 1630 |
| MFR Part No. | 26259623 |
| Basic Standard Group | DIN 6527 K |
| Material | Carbide |
| Product Type | CoroMill Plura End Mill |
| CoroPak | 12.2 |
| Maximum Depth of Cut | 26.5mm |
| Cutting Diameter | 20mm |
| Coating Type | AlCrN |
| Unit Measured | Metric |
| Shank Type | Weldon |
| Rotational Speed Maximum | 16600 1/min |
