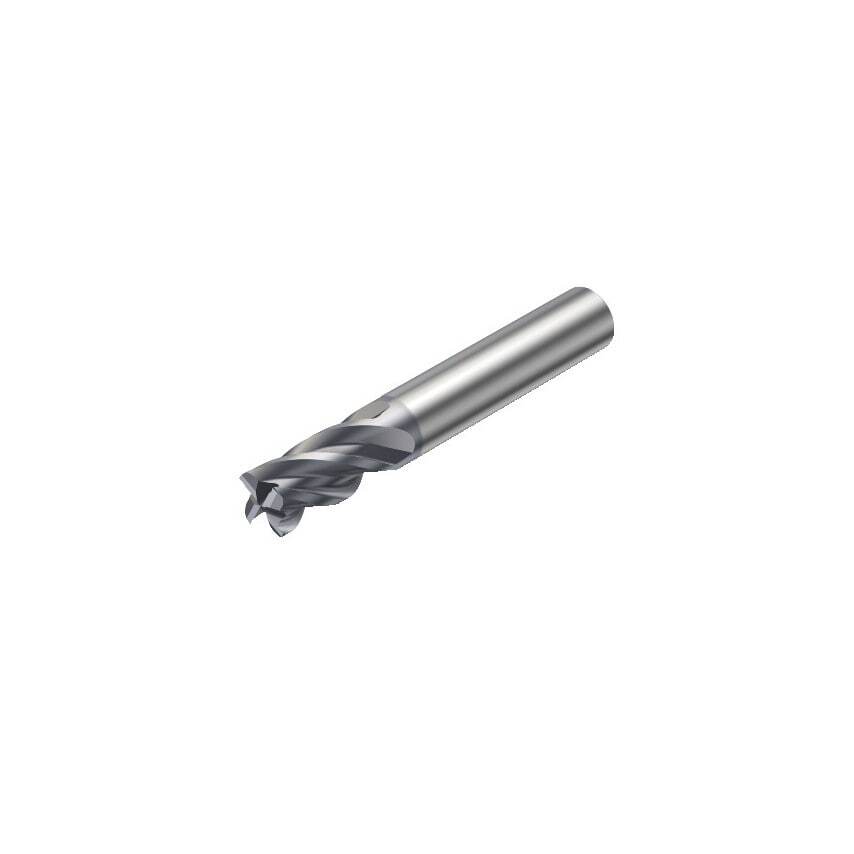

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | DIN 6527 K |
| CoroPak | 12.2 |
| Coolant Entry Style | Without Coolant |
| Standards Met | DIN 6527 K |
| Grade | 1630 |
| Maximum Cutting Depth | 22.5mm |
| MFR Part No. | 26259607 |
| Connection Diameter | 50mm |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Product Type | CoroMill Plura End Mill |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| Weight | 229.7g |
| Rotational Speed Maximum | 29200 1/min |
| Maximum Depth of Cut | 22.5mm |
| Through Hole Function Property | Yes |
| Center Cutting Capability | Yes |
| Maximum Ramping Angle | 5\u00b0 |
| Functional Length | 82mm |
| Usable Length | 22.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Shank Type | Cylindrical |
| Cutting Diameter | 16mm |
| Coating Type | AlCrN |
