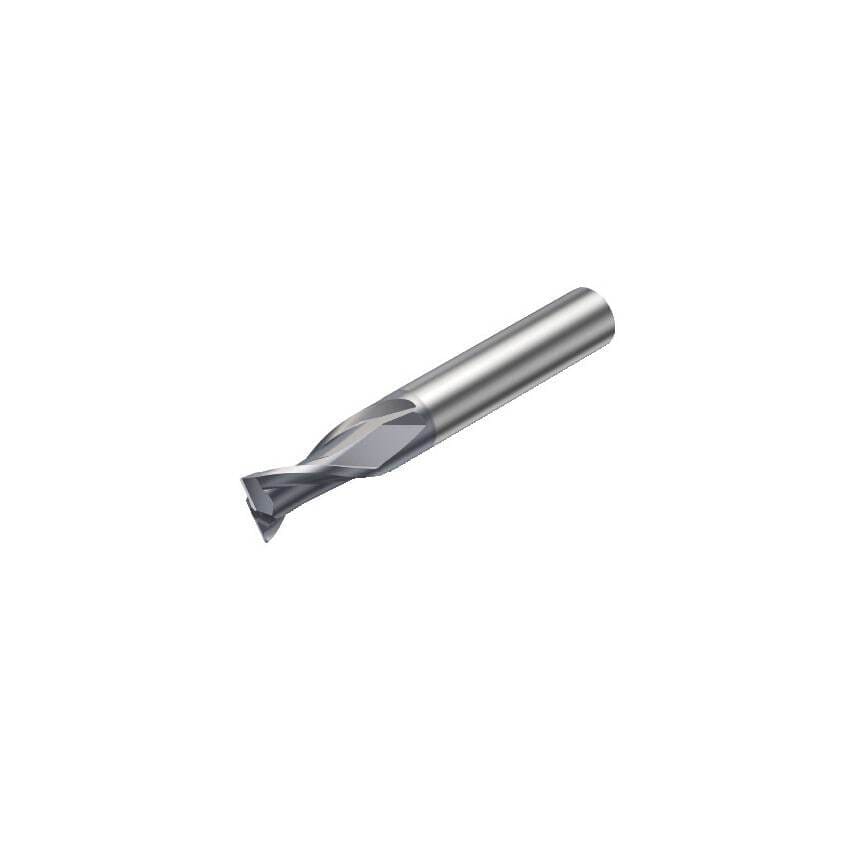

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Solid Carbide |
| Grade | 1630 |
| Product Type | CoroMill Plura End Mill |
| Shank Type | Weldon |
| Usable Length | 26.5mm |
| Maximum Ramping Angle | 9\u00b0 |
| Connection Diameter | 16mm |
| Coating Type | AlCrN |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 26259654 |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Center Cutting Capability | Yes |
| Cutting Diameter | 16mm |
| Basic Standard Group | DIN 6527 L |
| Functional Length | 92mm |
| Finish/Coating | AlCrN |
| Maximum Depth of Cut | 26.5mm |
| Through Hole Function Property | Yes |
| Weight | 0.24kg |
| Rotational Speed Maximum | 31500 1/min |
| Standards Met | DIN 6527 L |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 26.5mm |
