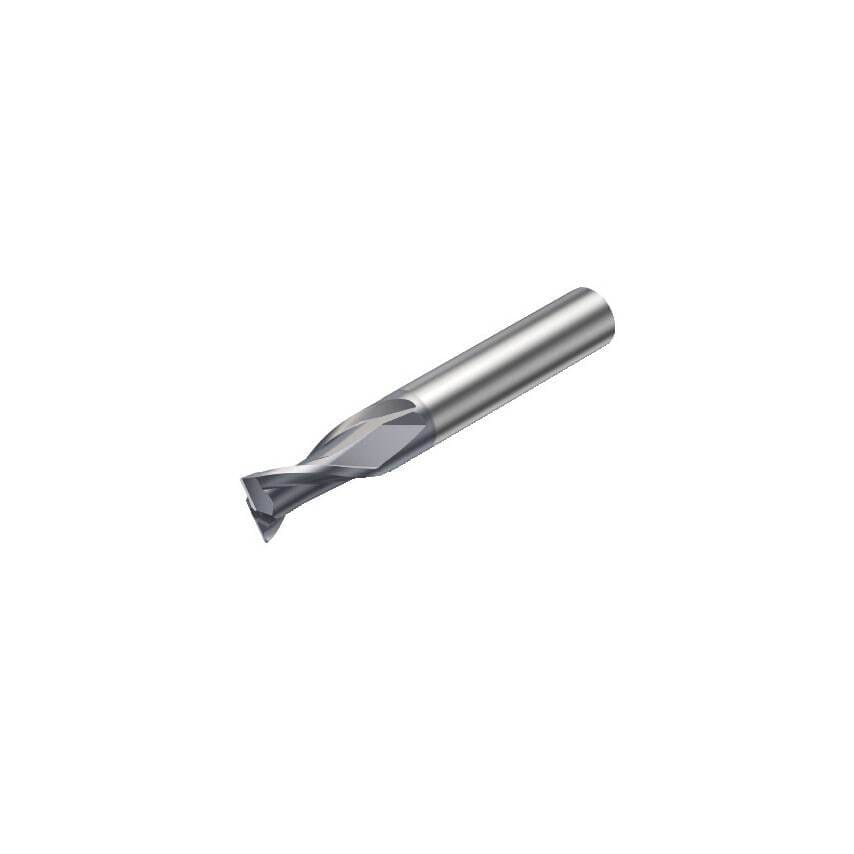

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 9\u00b0 |
| Coating Process Type | PVD |
| Functional Length | 72mm |
| Grade | 1630 |
| Standards Met | DIN 6527 L |
| Maximum Cutting Depth | 19.5mm |
| CoroPak | 12.2 |
| Rotational Speed Maximum | 80000 1/min |
| Basic Standard Group | DIN 6527 L |
| Product Type | CoroMill Plura End Mill |
| Maximum Depth of Cut | 19.5mm |
| Connection Diameter | 25mm |
| Coating Type | AlCrN |
| Center Cutting Capability | Yes |
| Cutting Diameter | 10mm |
| Shank Type | Weldon |
| Coolant Entry Style | Without Coolant |
| Usable Length | 19.5mm |
| Material | Solid Carbide |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 26259651 |
| Finish/Coating | AlCrN |
