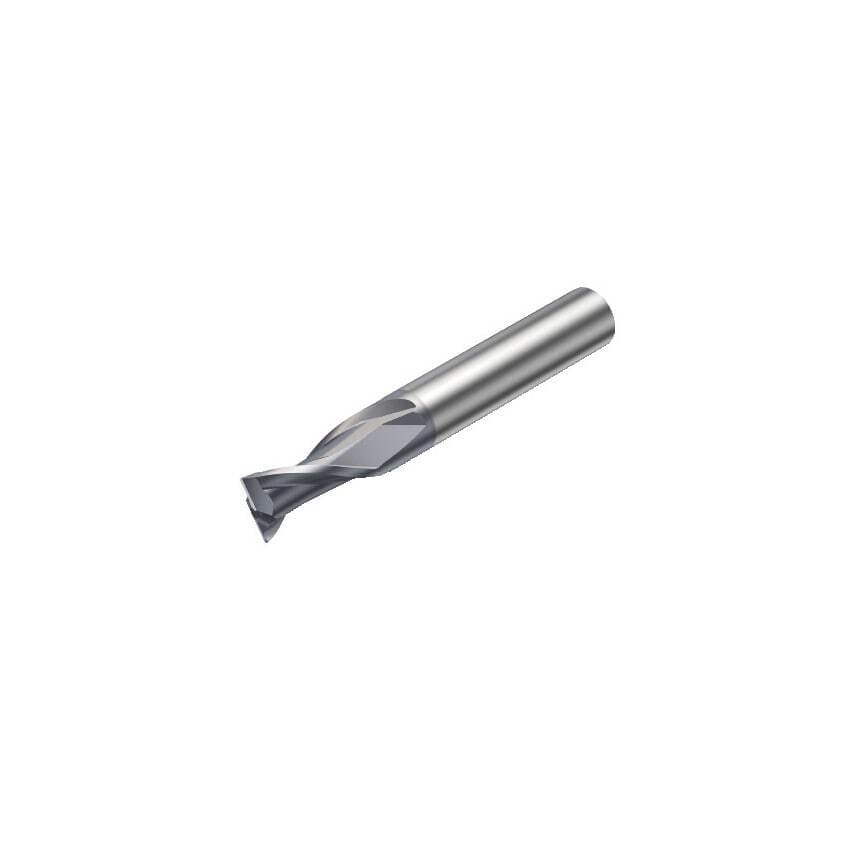

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 9\u00b0 |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 0.3kg |
| Connection Diameter | 63mm |
| Maximum Cutting Depth | 26.5mm |
| Unit Measured | Metric |
| Cutting Diameter | 18mm |
| Standards Met | DIN 6527 L |
| Material | Solid Carbide |
| Finish/Coating | AlCrN |
| MFR Part No. | 26259635 |
| Usable Length | 26.5mm |
| Rotational Speed Maximum | 25700 1/min |
| Product Type | CoroMill Plura End Mill |
| Functional Length | 92mm |
| Shank Type | Cylindrical |
| Grade | 1630 |
| Basic Standard Group | DIN 6527 L |
| Center Cutting Capability | Yes |
| Coating Type | AlCrN |
| Maximum Depth of Cut | 26.5mm |
| Coolant Entry Style | Without Coolant |
| CoroPak | 12.2 |
